Automatic perforator FAR 5-55
The FAR 5-55 automatic perforator is designed to quickly perforate loose sheets in large quantities, making it possible to create holes of various sizes and shapes to suit binding systems such as wire, spiral or plastic combs.
The FAR 5-55 features high reliability and long service life, while fast and safe tool changes minimize downtime and increase productivity.
How it works:

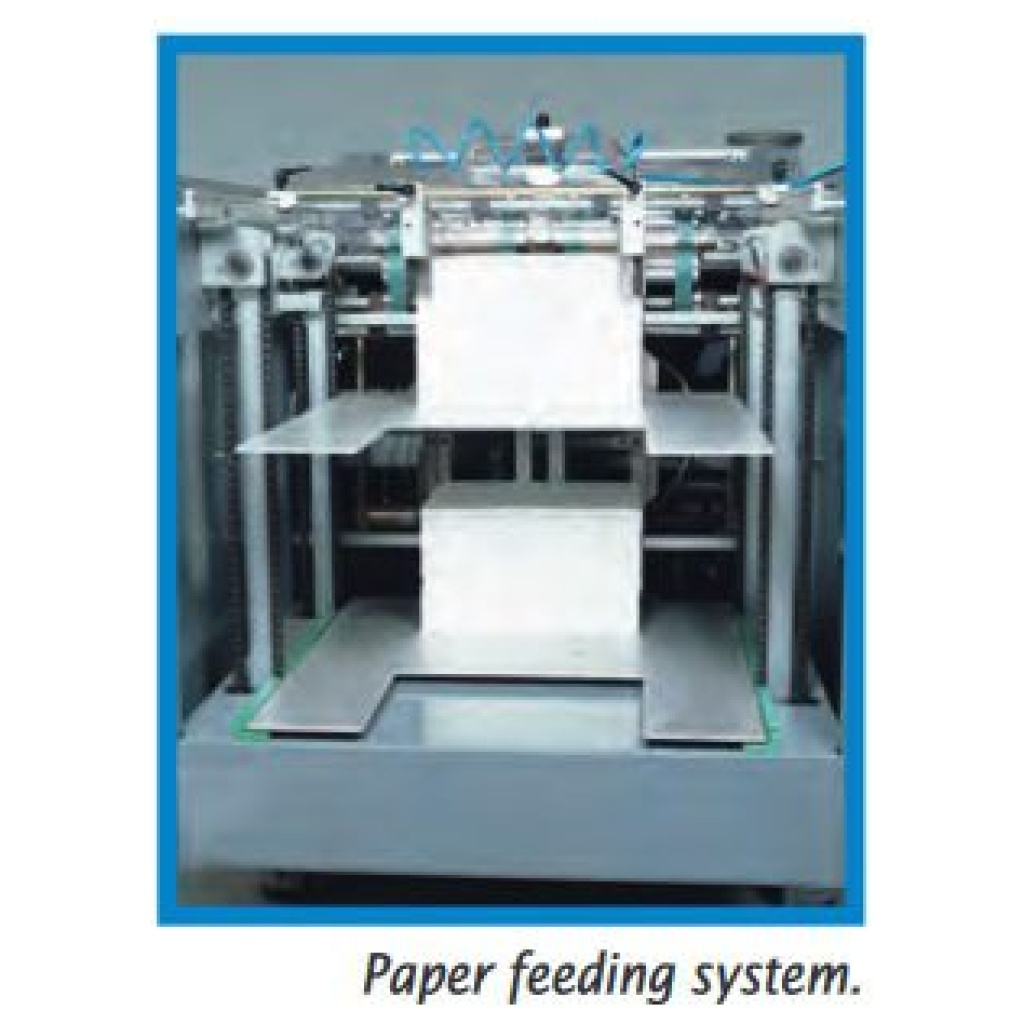

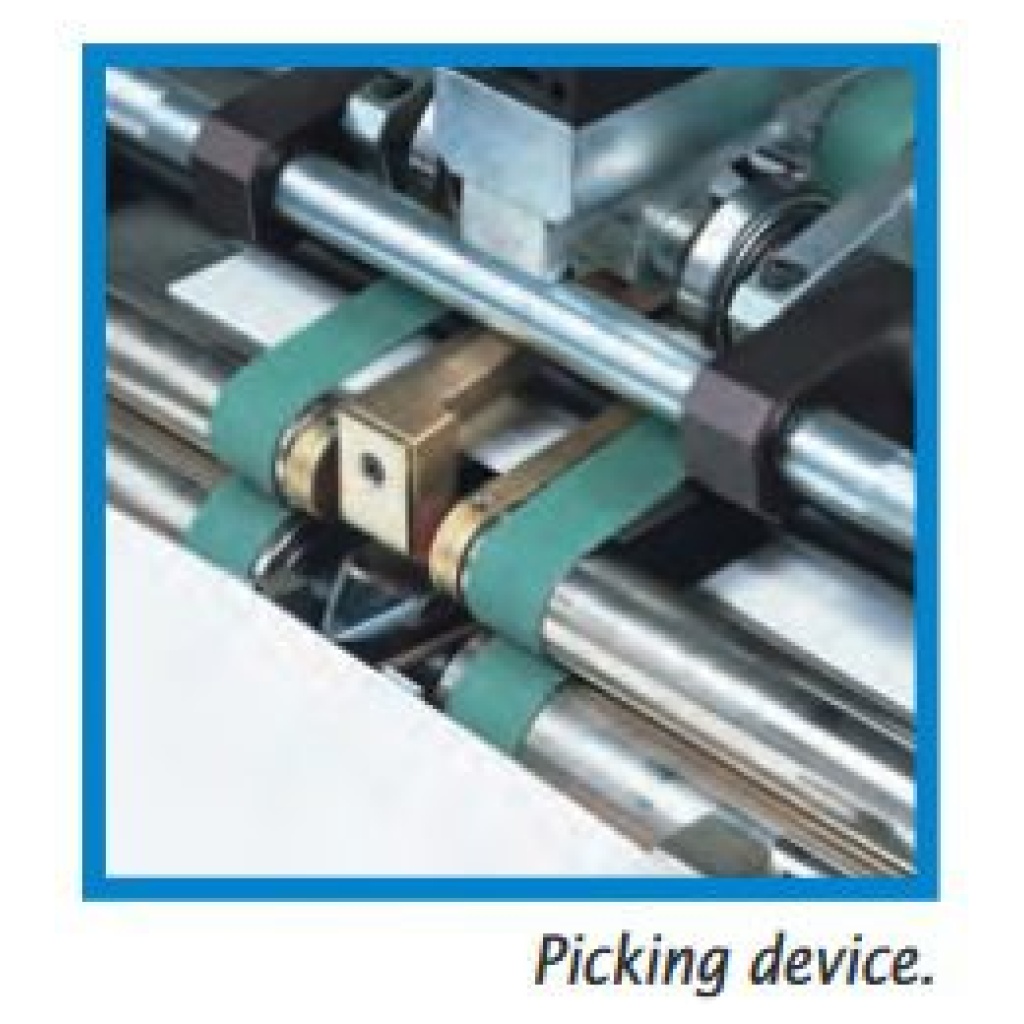

The FAR 5-55 allows continuous feeding of materials of variable thickness, such as paper and lightweight cardboard. Sheets are taken in batches of 1.5-2 mm thickness, centered, and then perforated with precision. Special conveyors ensure that the sheets move safely to the perforation zone, where they are accurately registered and perforated.
The finished sheets are collected in numerical order, which facilitates further processing.
Features:
- Maximum perforation thickness: 2.5 mm per punch (1.5 mm standard).
- Maximum sheet size for perforation: 550 x 550 mm.
- Minimum sheet size: 160 x 120 mm.
- Operating speed: adjustable, up to 120 strokes per minute.
- Adjustable perforation distance from the edge: up to 40 mm.
- A wide range of perforating tools, including tools for plastic spirals.
Technical data
| Model: | FAR 5-55 |
| Power: | 3 kW |
| Power supply: | 240 V, single-phase, 50/60 Hz |
| Weight: | 1250 Kg |
| Dimensions: | L 3200 x D 760 x H 1200 mm. |
Standard perforating tools:
- GF-55/3G: 3:1″ pitch, three 3.7 x 4.0 mm holes per inch, 550 mm perforation length, including hanger cutout.
- GF-55/3: 3:1″ pitch, three holes 3.7 x 4.0 mm per inch, 550 mm perforation length, suitable for 5/16″, 3/8″ and 7/16″ wires.
- GF-55/2: 2:1″ pitch, two 4.7 x 5.0 mm holes per inch, 550 mm perforation length, suitable for 5/8″ and 3/4″ wires.
Other shapes of perforating strips are available upon request.
If you need more information or want to inquire about technical details, feel free to contact us! We will be happy to answer all your questions and help you customize the device to meet your needs.
High performance - The FAR 5-55 achieves speeds of up to 120 strokes per minute, making it possible to perforate large quantities of sheets quickly.
Versatility - It supports a variety of formats and hole types, including wire, spiral and plastic comb systems, making it ideal for different binding methods.

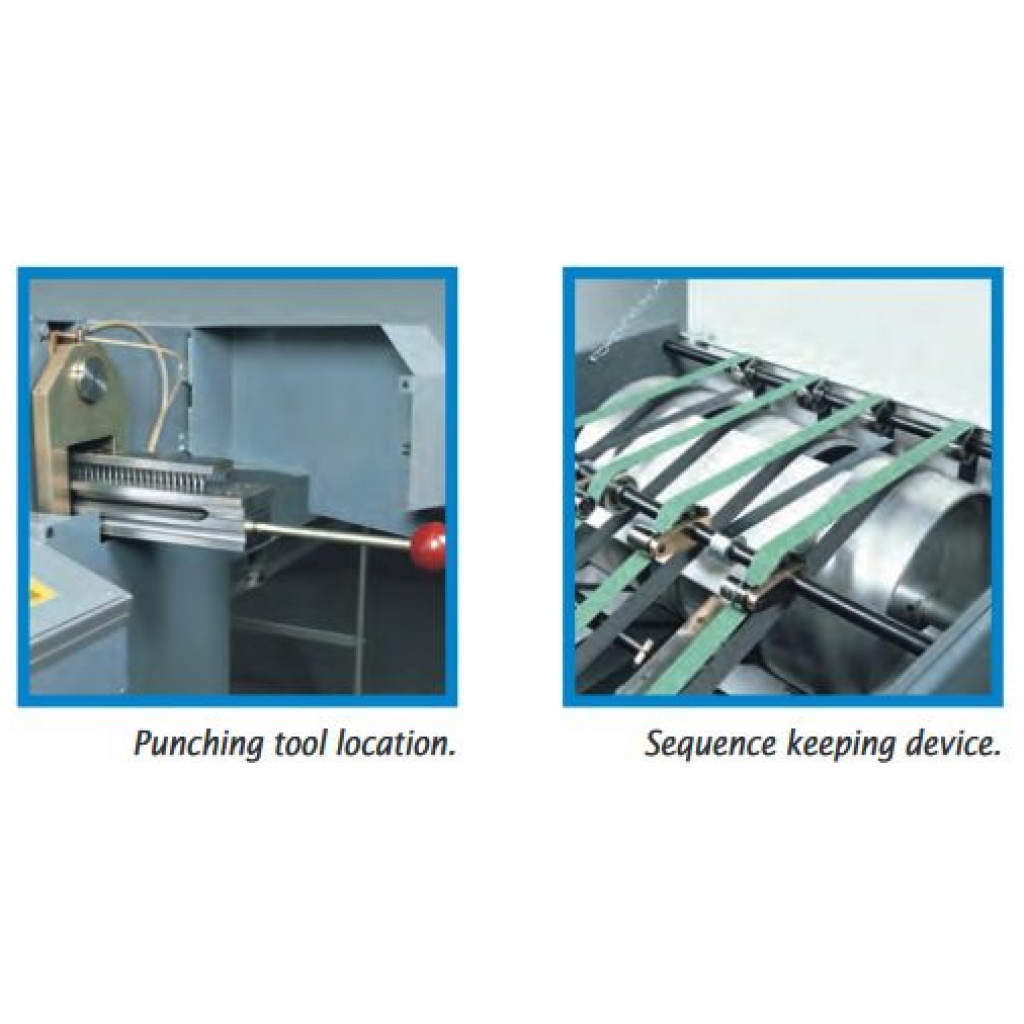

Easy tool replacement - Fast and safe die changes allow the machine to be efficiently adapted to different projects and production requirements.
