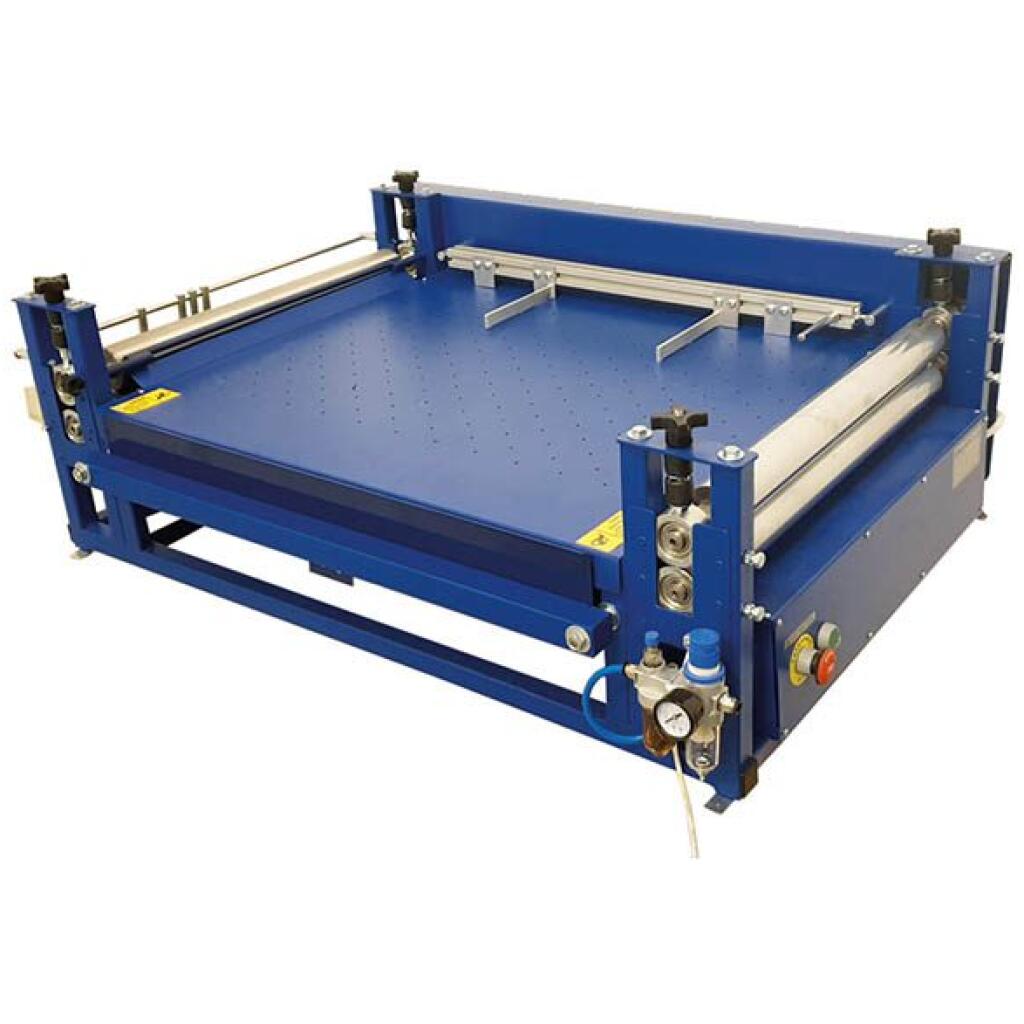

Cover production - CM-03

A compact, easy-to-use machine for the production of hardcover binding. The machine enables:
- glue application on the veneer
- wrapping the edges of the veneer
- cover ironing

The machine has 2 roller units:

made of stainless steel for glue application
Chrome-plated used as a press.

Wrapping of the edge of the veneer is carried out using a rubber-covered metal plate - the drive of the plate is transmitted using a pneumatic actuator. One edge is wrapped during one cycle. The work table has an under-feed which makes work easier and reduces mistakes.

SPECIFICATION CM-03
Maximum cover size:	700 x 500 mm
Minimum cover size:	60 x 60 mm
Working speed	up to 2 pcs/min
Power supply	400V, 50Hz, 0.2 kW motor
Air	Compressor required 6-8 bar
Weight of the machine	90 kg
Machine sizes	120 x 80 x 40 cm
Width of rollers	55 cm
Glue application	Cold only
