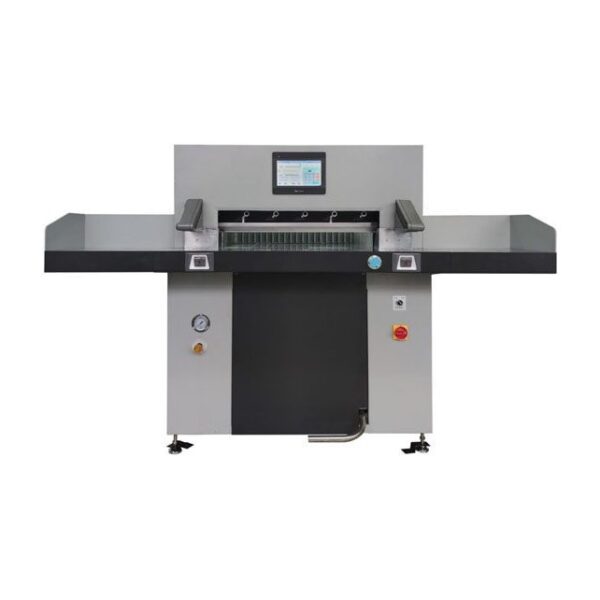

HydroCut 72 and 82 professional hydraulic guillotines
Series of hydraulic guillotines HydroCut is the answer to the needs of the most demanding digital and offset printers. Available in two working widths - 720 mm (model 72) and 820 mm (model 82) - are the backbone of the modern bindery, guaranteeing unparalleled precision and productivity. Thanks to a powerful hydraulic drive, robust construction and advanced Japanese control, HydroCut guillotines easily handle high volumes and ensure perfectly even cutting of every paper stack.
Key features and benefits
💧 Full hydraulic power
Both the knife drive and the pressure bar operate with a powerful hydraulic system. This makes it possible to infinitely adjust the clamping force in a range of 200 to 20,000 N, which eliminates the risk of slippage even when cutting slippery and difficult materials.
🇯🇵 Japanese precision and control
At the heart of the machine is a reliable system Omron PLC (made in Japan), controlled from 10-inch touchscreen. This guarantees cutting accuracy up to 0.2 mm and allows you to save 100 programs of 16 steps each.
🛡️ Uncompromised security
The guillotine meets the rigorous CE safety standards. Dual protection in the form of infrared curtains (photocells) immediately stops the operation of the cutter if the cutting zone is violated, protecting the operator's hands.
Model comparison - technical specifications
| Parameter | HydroCut 72 | HydroCut 82 |
|---|---|---|
| Cutting width | 720 mm | 820 mm |
| Maximum stack height | 80 mm | 80 mm |
| Cutting accuracy | 0.2 mm | 0.2 mm |
| Minimum residual | 30 mm | 30 mm |
| Net weight | ~620 kg | ~670 kg |
| Dimensions (Head x H) | 1630 x 1490 mm | 1630 x 1490 mm |
| Width with side covers | ~2090 mm | ~2190 mm |
Join more than 1,900 satisfied customers
At Akonda.pl, we have been providing innovative bookbinding solutions throughout Poland - from Szczecin to the Bieszczady Mountains. Purchasing a machine is just the beginning of our cooperation. We invite you to our Demonstration Center in Piaseczno, where our specialists will help you choose the perfect solution for your needs.
- 12-month warranty and professional service throughout Poland.
- Delivery, installation and training operators at your facility as standard.
- Full post-warranty service and constant access to consumables.
