Box forming machine

  • Box molding can be done in different modes, corresponding to different folding lengths.
  • This machine has an automatic stop function and fault display.
  • It takes 5 to 10 minutes to replace molds of different sizes.
Ask for product

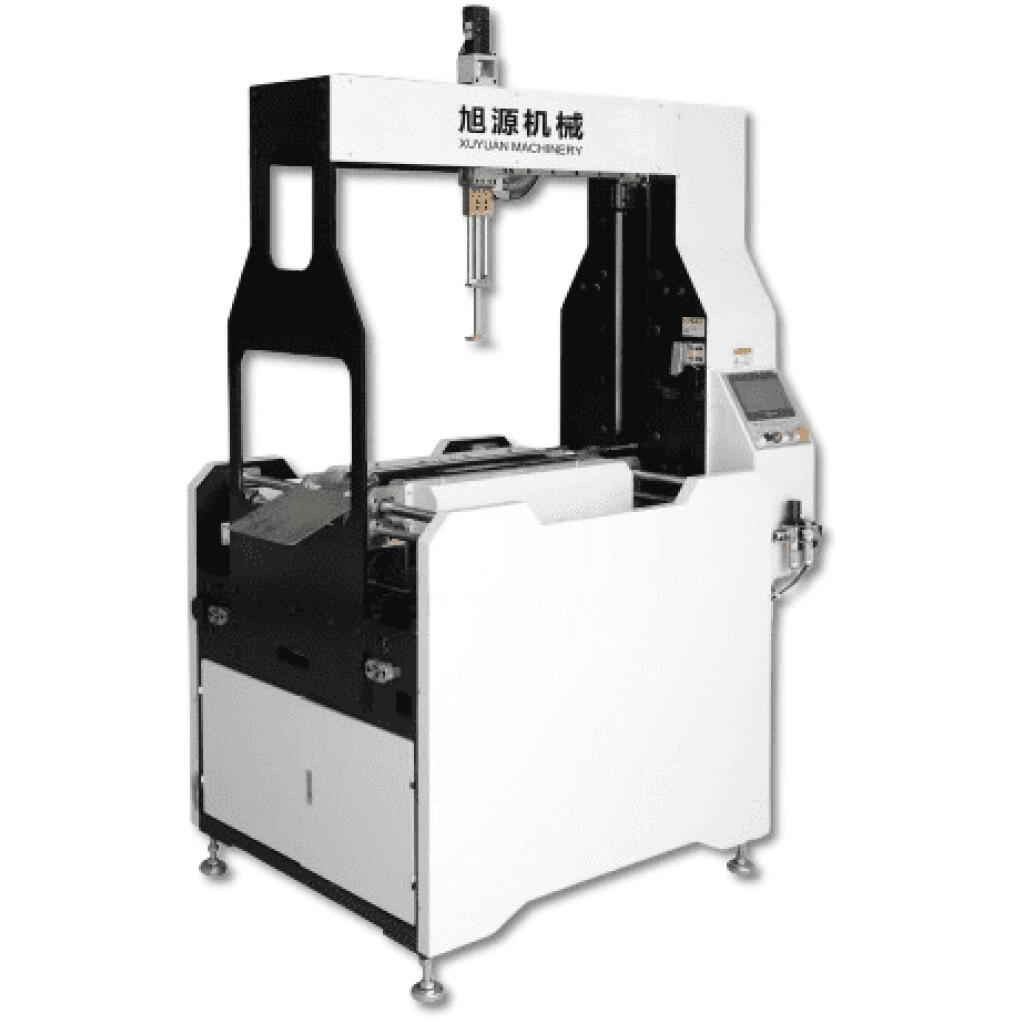

The intelligent automatic molding machine is an ideal device for producing high-quality gift boxes in various sizes.

Model: XY-500A/350A

Product details

The automatic molding machine is distinguished by its modern design and stable performance, reaching the world technological level.

The machine uses a programmable PLC controller that works with an intuitive human-machine interface for easy operation. The machine can store up to 239 different box sizes, and it takes only 5-10 minutes to change molds. The efficiency of changing sizes is several times higher than in traditional molding machines.

In addition, the machine is equipped with automatic fault diagnosis functions, a message display system and alarms, which increases the safety of use. It is ideal for producing boxes for electronics, jewelry and other luxury gift boxes.

Attention: The maximum and minimum box sizes depend on the dimensions of the paper and its quality. Production speed depends on the size of the box and the type of paper material.

This machine is the key to success in the packaging industry. With modern technology and high efficiency, you can produce luxury gift boxes in record time.



Technical data

ModelXY-500AXY-350A
Longest (L)500mm380mm
Shortest (L)80mm45mm
Widest (W)400mm350mm
Narrowest (W)60mm40mm
Highest (H)120mm90mm
Lowest (H)12mm12mm
Length of inner folding edges10-80mm10-70mm
Length of folding ears10-100mm10-70mm
Cardboard thickness (T)1.0mm - 4.0mm1.0mm - 4.0mm
Paper thickness (g/m²)80g/m2-300g/m280g/m2-300g/m2
Speed≤20pcs/min≤20pcs/min
Air pressure0.6-0.8MPa0.6-0.8MPa
Voltage220V/50Hz220V/50Hz
Power2kw1.5kw
Weight1100kgs950kgs
DimensionsL1200 * W1500 * H2200mm.L1100 * W1400 * H2000mm.

If you need more information or want to inquire about technical details, feel free to contact us! We will be happy to answer all your questions and help you customize the device to meet your needs.

;

Box molding can be done in different modes, corresponding to different folding lengths.

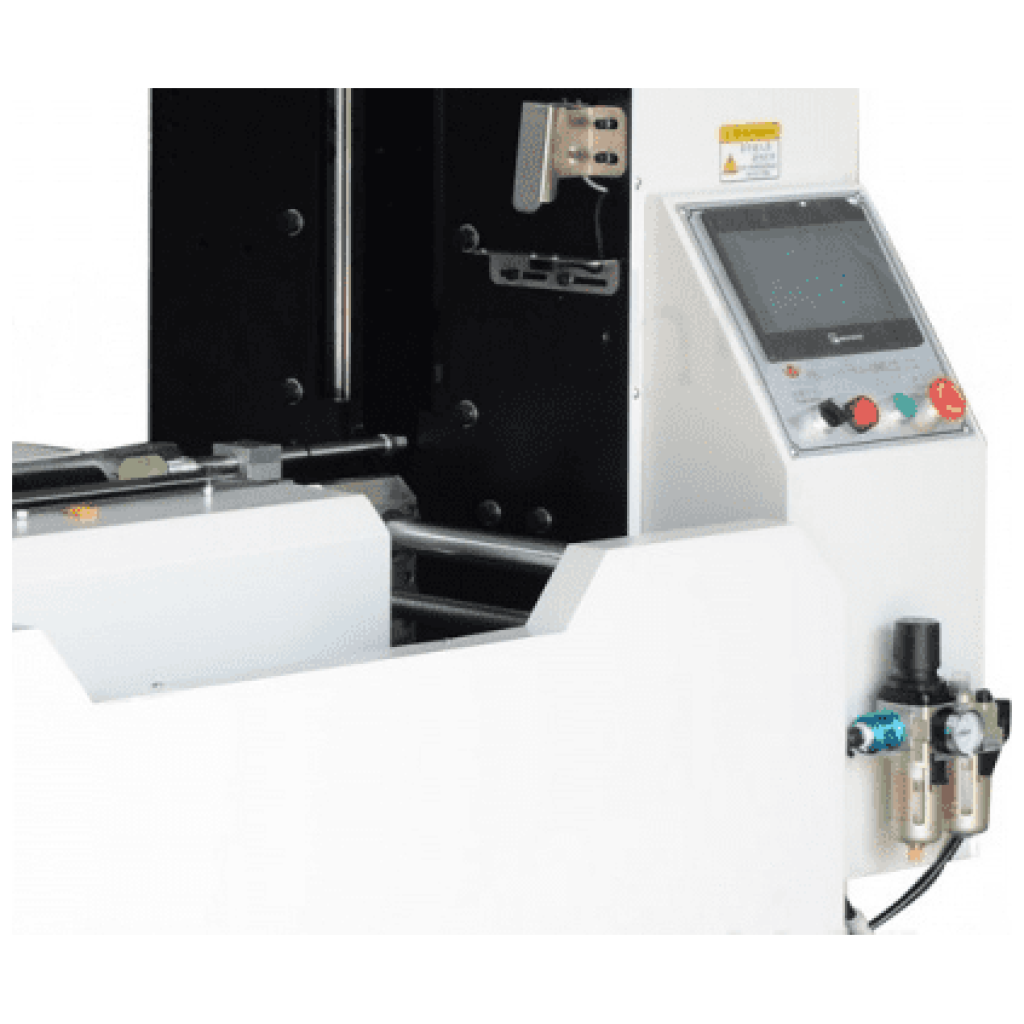

The entire machine is controlled by a PLC, with a human-machine interface, which enables automatic production of the box molding process.

N

Maximum of 239 memories for different sizes
