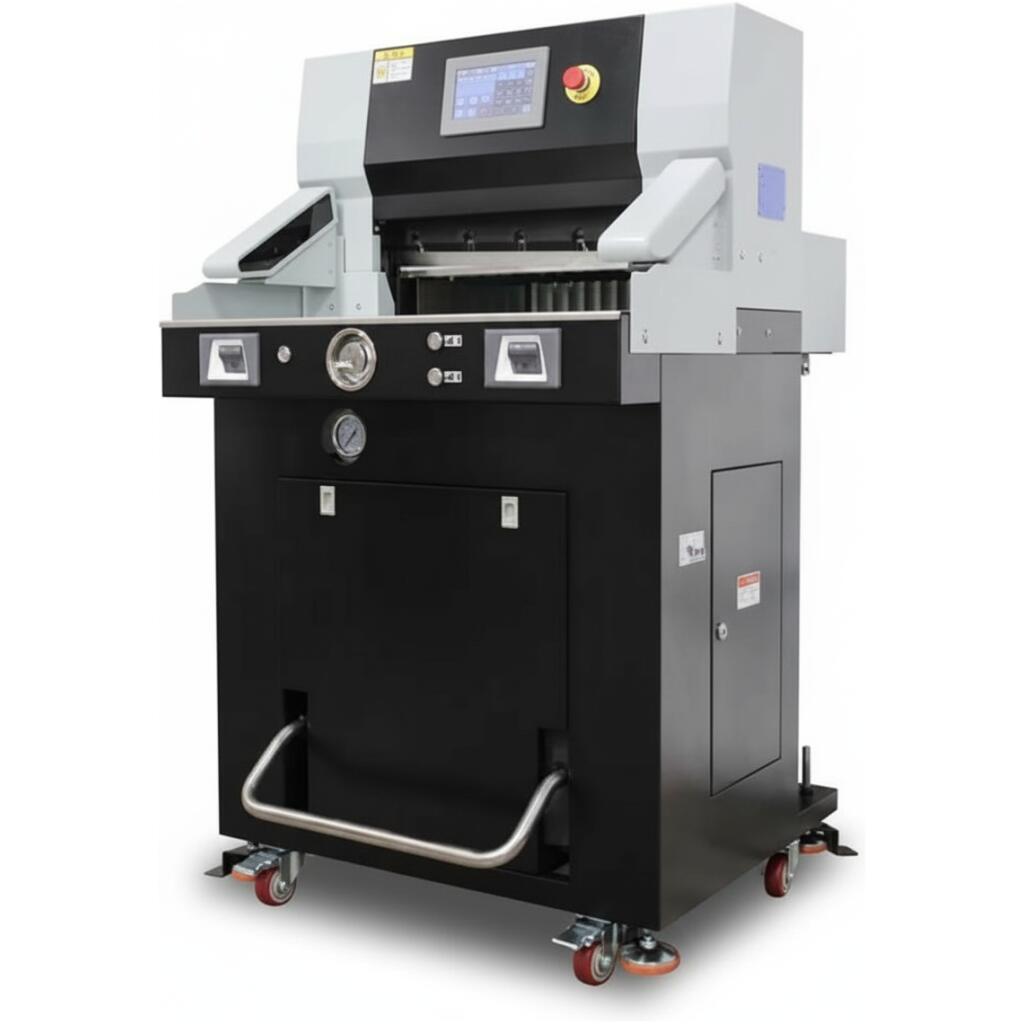

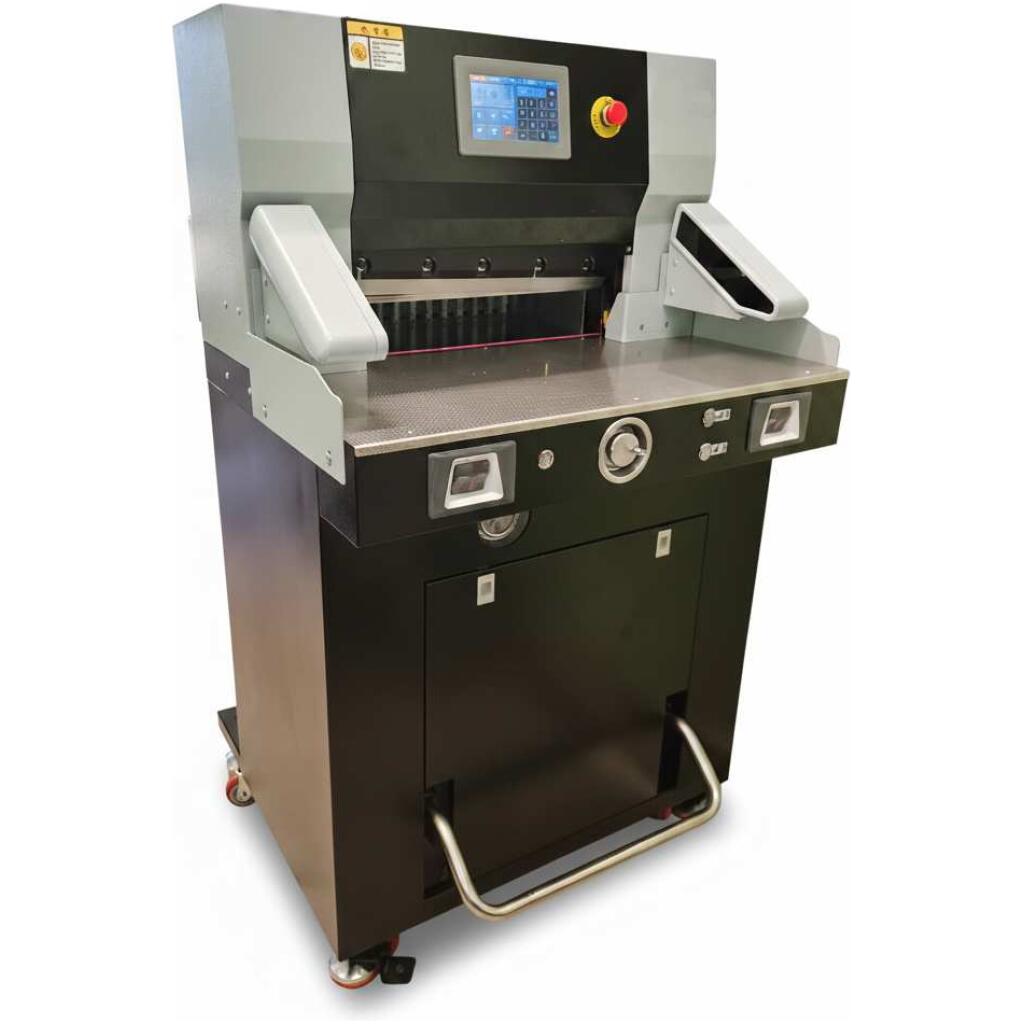

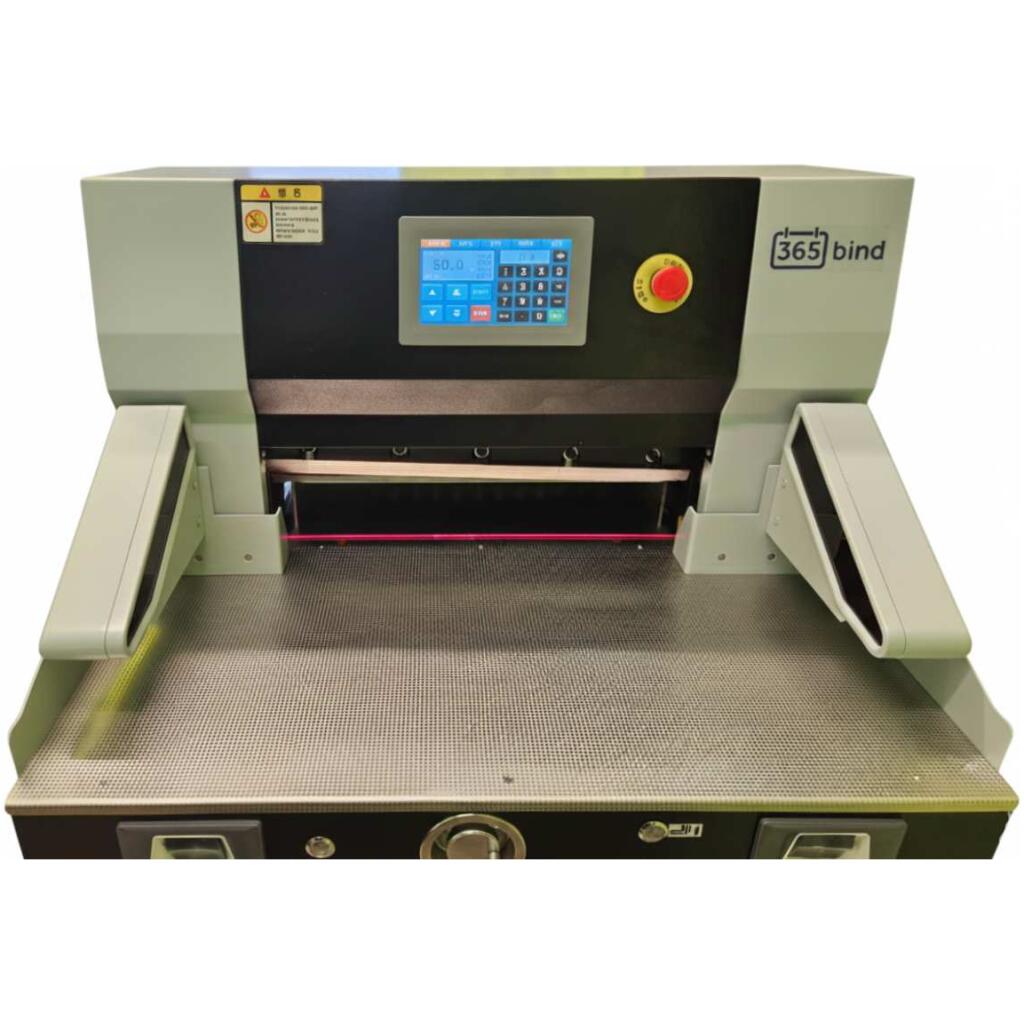

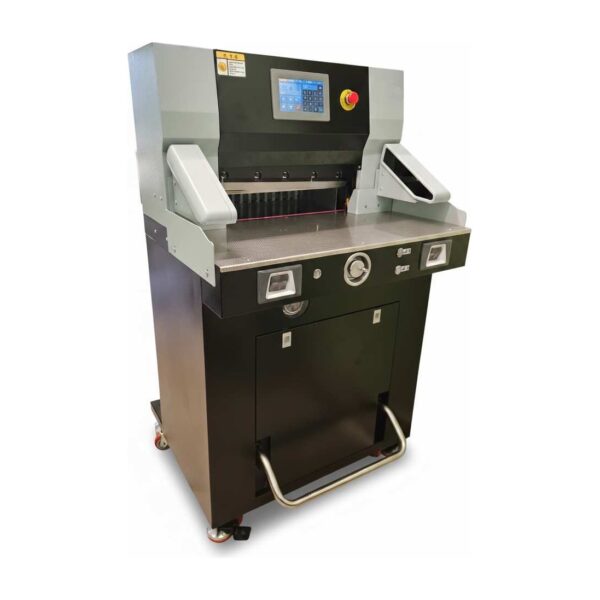

Hydraulic Guillotine 365bind HP490 - Strength and Precision
Guillotine 365bind HP490 is a compact and powerful device that brings the power of full hydraulics to smaller and medium-sized production facilities. Designed for reliability and ease of use, it combines rugged construction with modern controls. Thanks to its hydraulic blade drive and clamping, the HP490 guillotine provides perfectly clean, repeatable cutting of stacks up to 80 mm high. It is an excellent choice for digital printers, advertising agencies and companies that need precise cutting of a variety of sheet materials.
This is the long-awaited hydraulic model in 49 cm width - ideal for expanded SRA3.
Key features and benefits
💧 Dual hydraulic drive
Both the cutter and the pressure bar are driven by a powerful hydraulic system. This guarantees even force across the entire cutting width and smooth operation even at the maximum stack height.
⚙️ Precision and repeatability
Using a ball screw and dual linear guides, the positioning saddle moves with accuracy ±0.2 mm, which ensures perfect repeatability of each cut.
🖥️ Intuitive control and safety

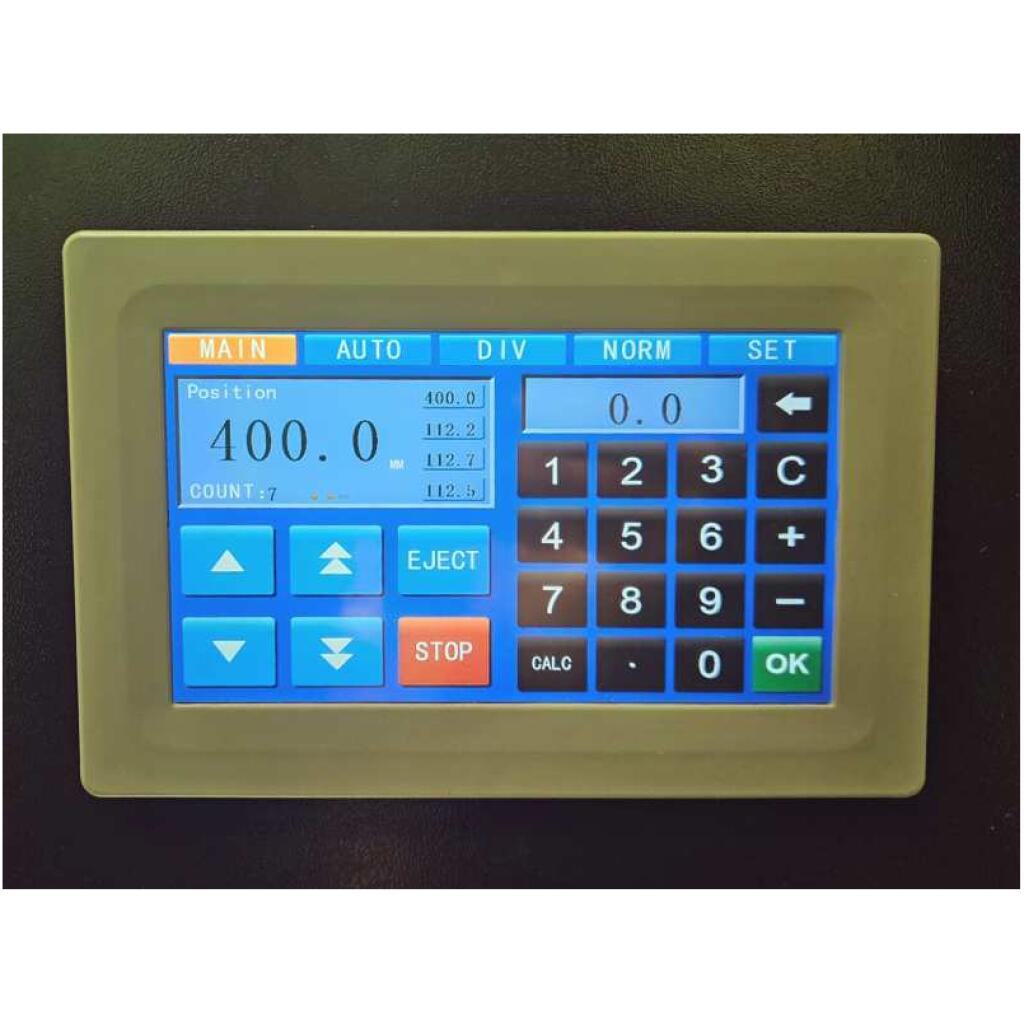

Operation is facilitated by 7-inch touchscreen With memory for 100 programs. Operator safety is monitored by a six-point light curtain that stops the machine immediately.
Technical Specifications - HP490
| Cutting width | 490 mm |
| Maximum stack height | 80 mm |
| Minimum residual | 40 mm |
| Cutting accuracy | ±0.2 mm |
| Paper pressure | Automatic, hydraulic |
| Saddle (bumper) drive | Stepper motor on ball screw |
| Display | Touch color screen 7 inches |
| Security | Six-point light curtain |
| Power supply | 220V |
| Net weight | 365 kg |
| Dimensions (W x D x H) | 1170 x 840 x 1420 mm |
Partnership with Akonda.pl is a Guarantee of Peace of Mind
At Akonda.co.uk, we know that buying a machine is just the beginning. That's why we provide
full support at every stage - From professional consulting, to delivery, to implementation and service.
- Professional service Warranty and post-warranty service throughout Poland.
- Delivery, installation and training operators at your facility as standard.
- Permanent access to consumables, such as knives, spools and other components.
