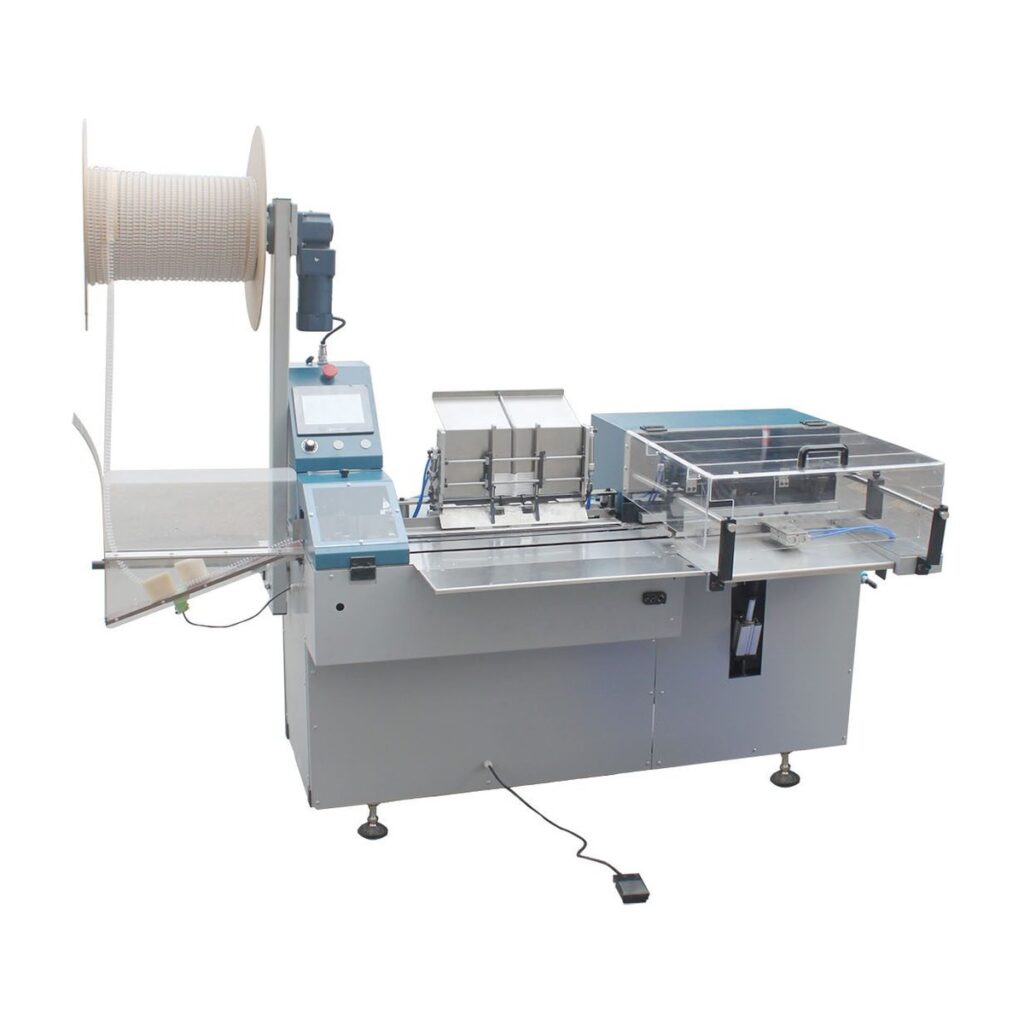

Semi-automatic spiral crimper CB-420 for working with notepads, notebooks, desk and wall calendars. It works with spirals from 1/4" to 1 + ¼" without changing the tool! The machine cuts the spirals according to the set parameters (set on the touch screen), the operator applies the bound material, the machine closes the spiral and lays it on the tape receiver or directly into the box.
A calendar pendant as well as a tape receiver are options.
The machine provides predictable, fast operation with no material loss with easy change of bound material.
Basic technical data Semi-automatic Spiral Closer CB-420:
- Maximum framed size: 420*420mm
- Minimum framed size: 70*100mm
- Spiral sizes: 1/4"-1+1/4"
- Thickness of the binding: 1.5mm-27mm
- Binding speed: 600-1100 bindings per hour
- Maximum pendant length: 380mm
- Compressor required: 6-8bar
- Dimensions: 2220mm*1000mm*1800mm
- Power supply: 230V
- Machine weight: 255kg
