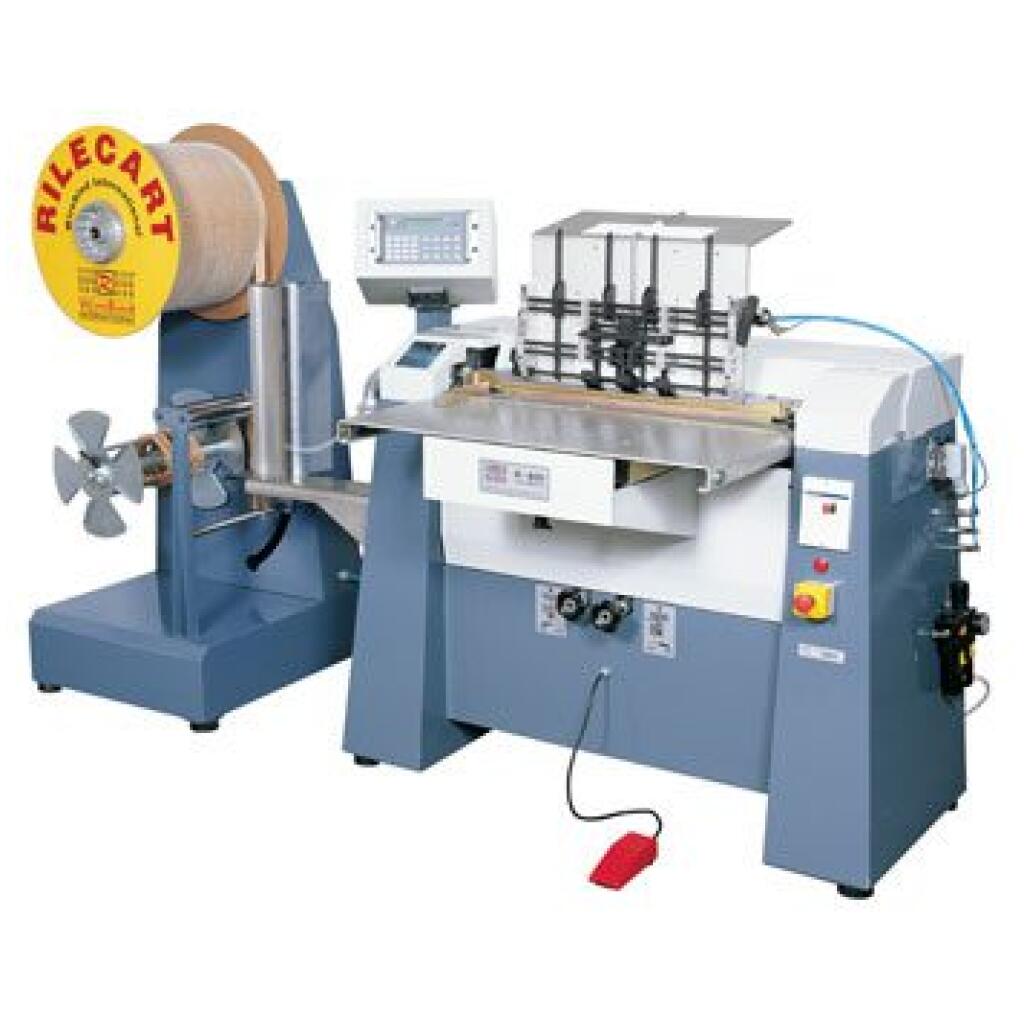

R-800 T.S. spiral crimping machine.
Spiral crimper R-800 is the world's only semi-automatic machine designed specifically for binding large calendars and planners up to 800 mm long.
This specialized machine makes it possible to achieve the highest levels of productivity on even the most demanding products. Easy-to-change tools ensure fast turnaround times, making it ideal for professional bookbinders.
How does the R-800 spiral crimper work?
The operator enters the required parameters in the computer, such as diameter, pitch, number of coils per length and quantity to be bound.
The machine automatically unwinds the spool, counts and cuts the wire, and then transfers the sections to the binding area.

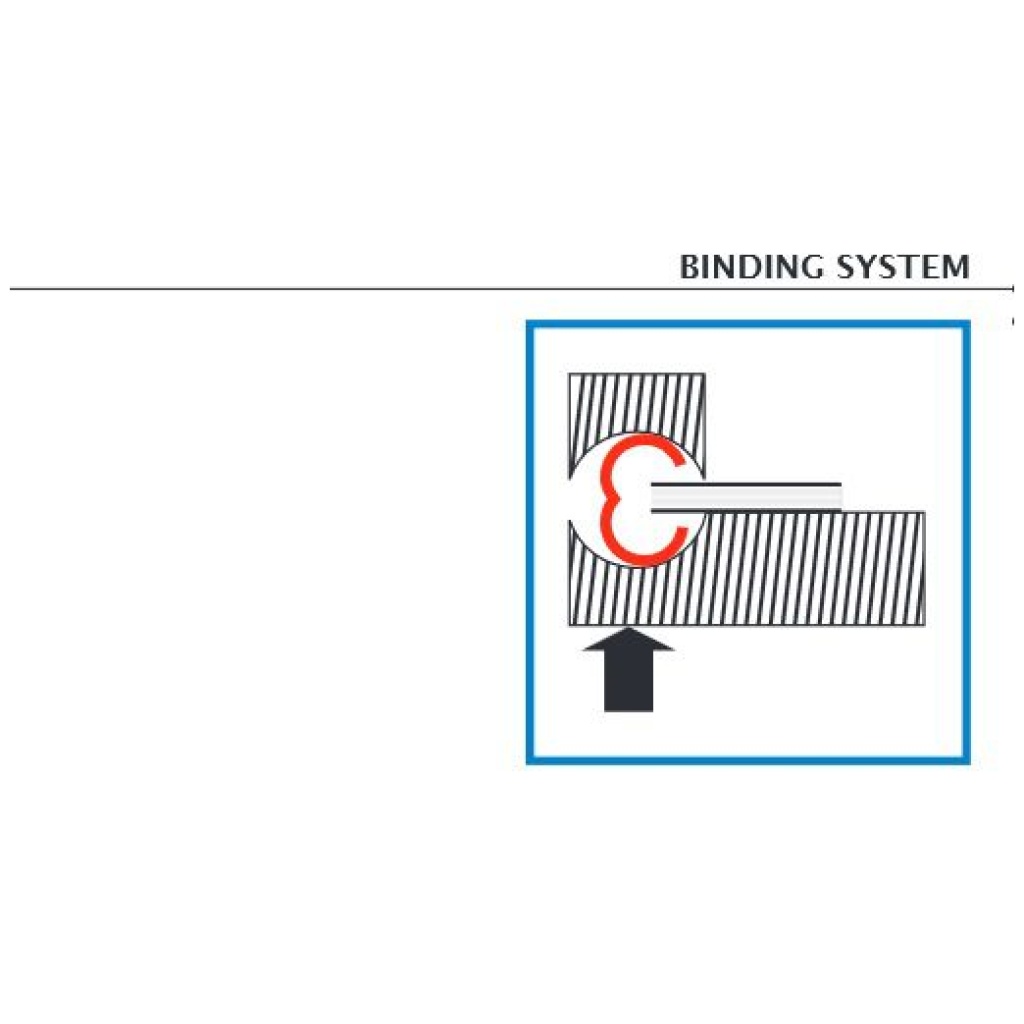

Once the calendar is placed on the table, the operator presses a foot pedal and the table moves the product to the binding station, where the spiral is inserted and closed with a special tool.
Features of the R-800 Spiral Crimper:

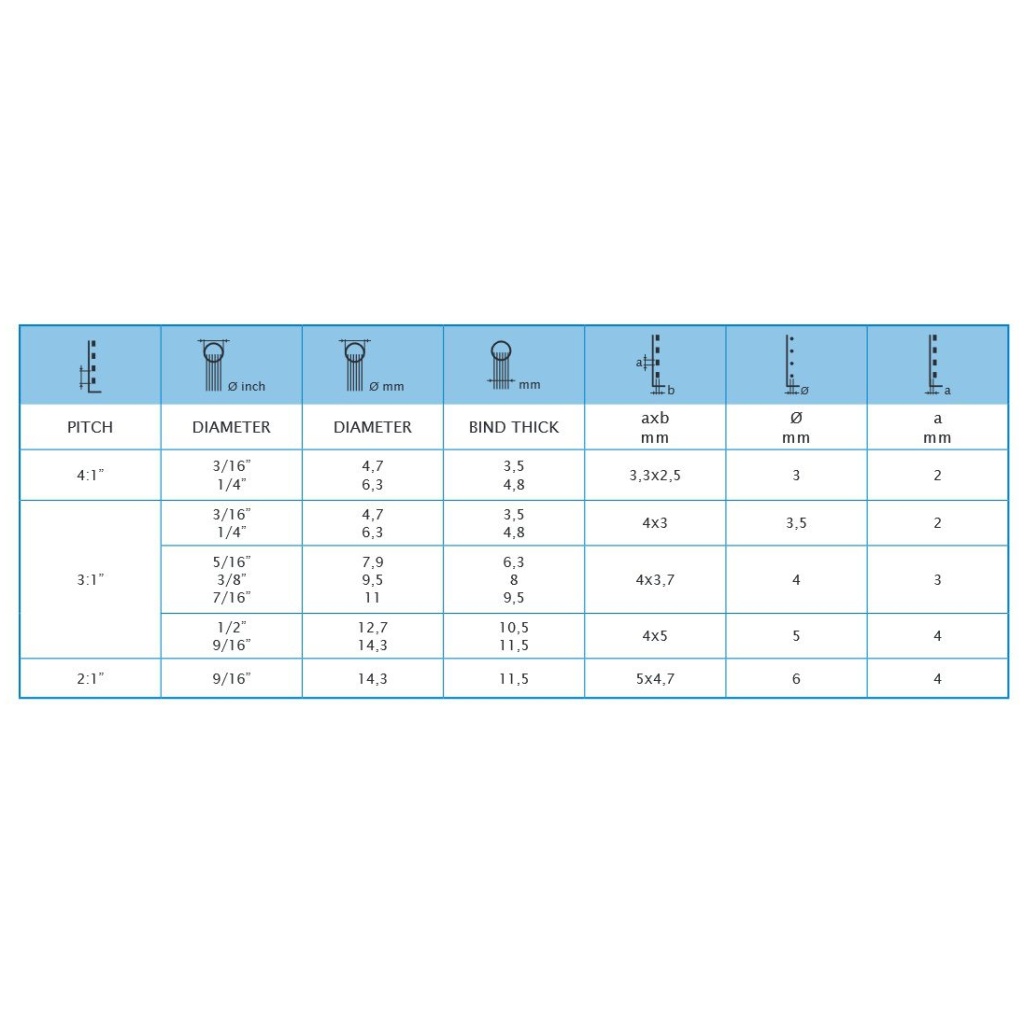

- Flexibility in use: It supports wires on spools with diameters from 3/16" to 9/16" in 3:1", 2:1" and 4:1" pitches, for a maximum binding thickness of 11.5 mm.
- Performance: Maximum binding lengths reach up to 800 x 1000 mm (32 x 40 inches) at speeds of up to 1,000 cycles per hour for greater efficiency.
- Intuitive operation: Controlled by a microprocessor with memory for up to 50 work sequences and the ability to automatically insert hangers during binding.
Technical data
| Model: | R-800 |
| Power: | 2kW |
| Power supply: | 220 V, single-phase, 50/60 Hz |
| Weight: | 600 Kg |
| Dimensions: | Height 1500 mm x Depth 1000 mm x Width 2700 mm. |
If you need more information or want to inquire about technical details, feel free to contact us! We will be happy to answer all your questions and help you customize the device to meet your needs.
Additional options R-800 Spiral Crimpers:

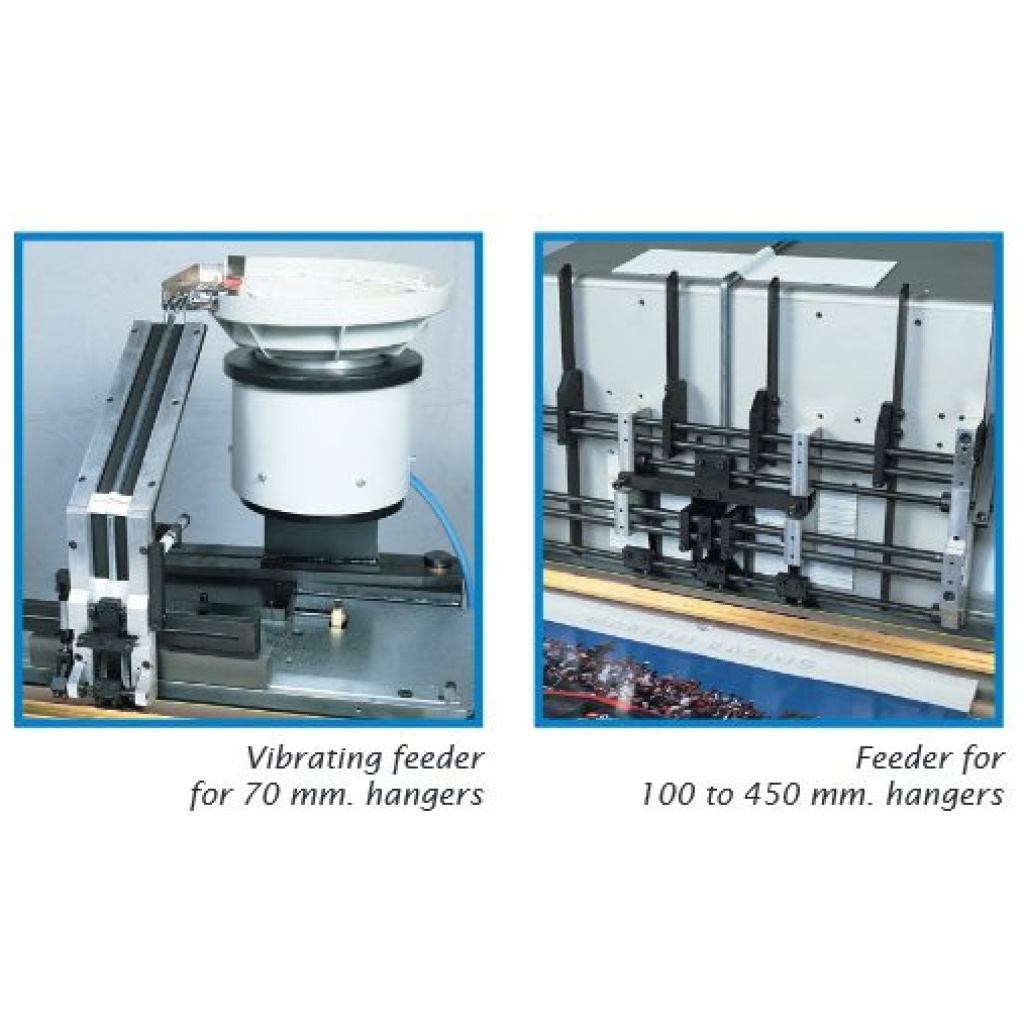

- Automatic and semi-automatic pendant feeder, pendant formier and remote assistance module.
Performance: The R-800 T.S. spiral crimper reaches speeds of up to 1,000 cycles per hour, which significantly increases the efficiency of producing large calendars and planners.
Flexibility: It supports wires with diameters from 3/16" to 9/16" in different pitches (3:1", 2:1", 4:1") to accommodate different binding needs.
Intuitive controls: Equipped with microprocessor control with memory for up to 50 working sequences, which facilitates operation and increases the accuracy of the binding process.
