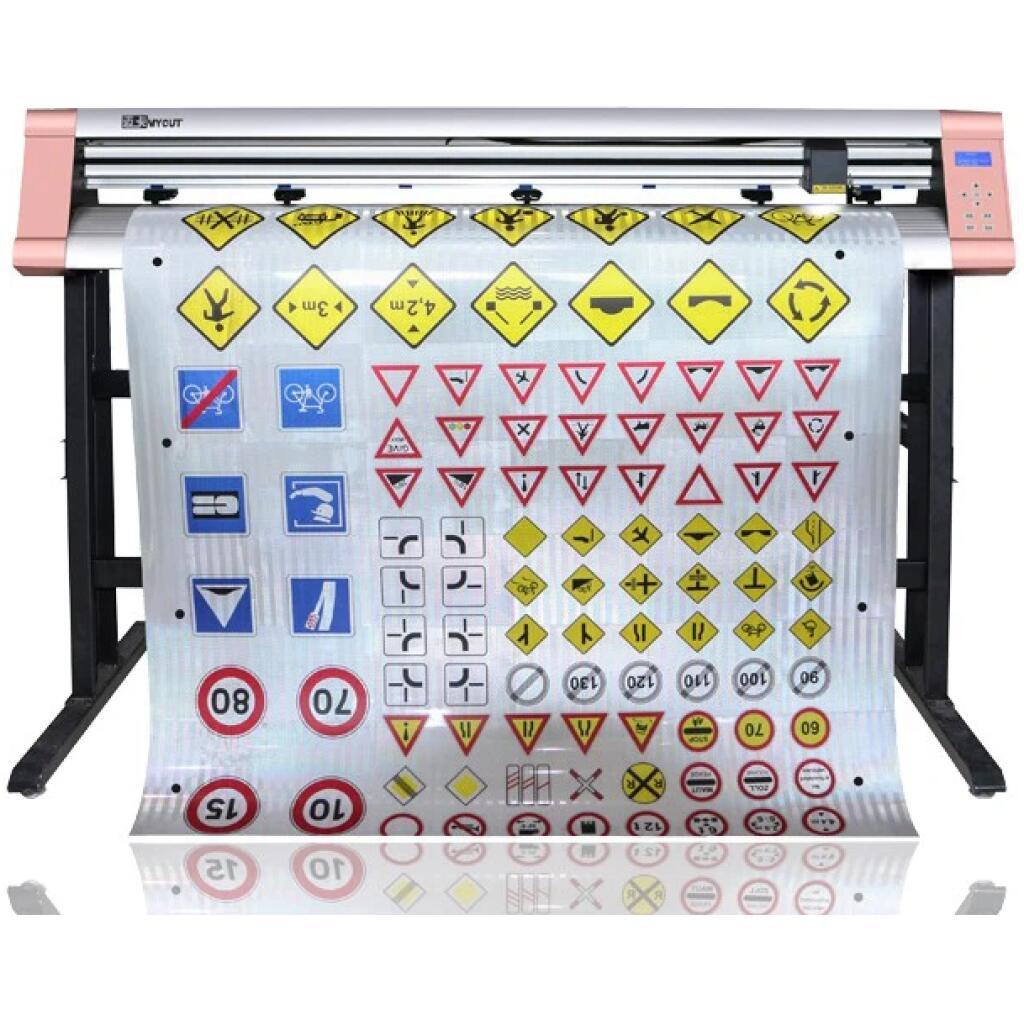

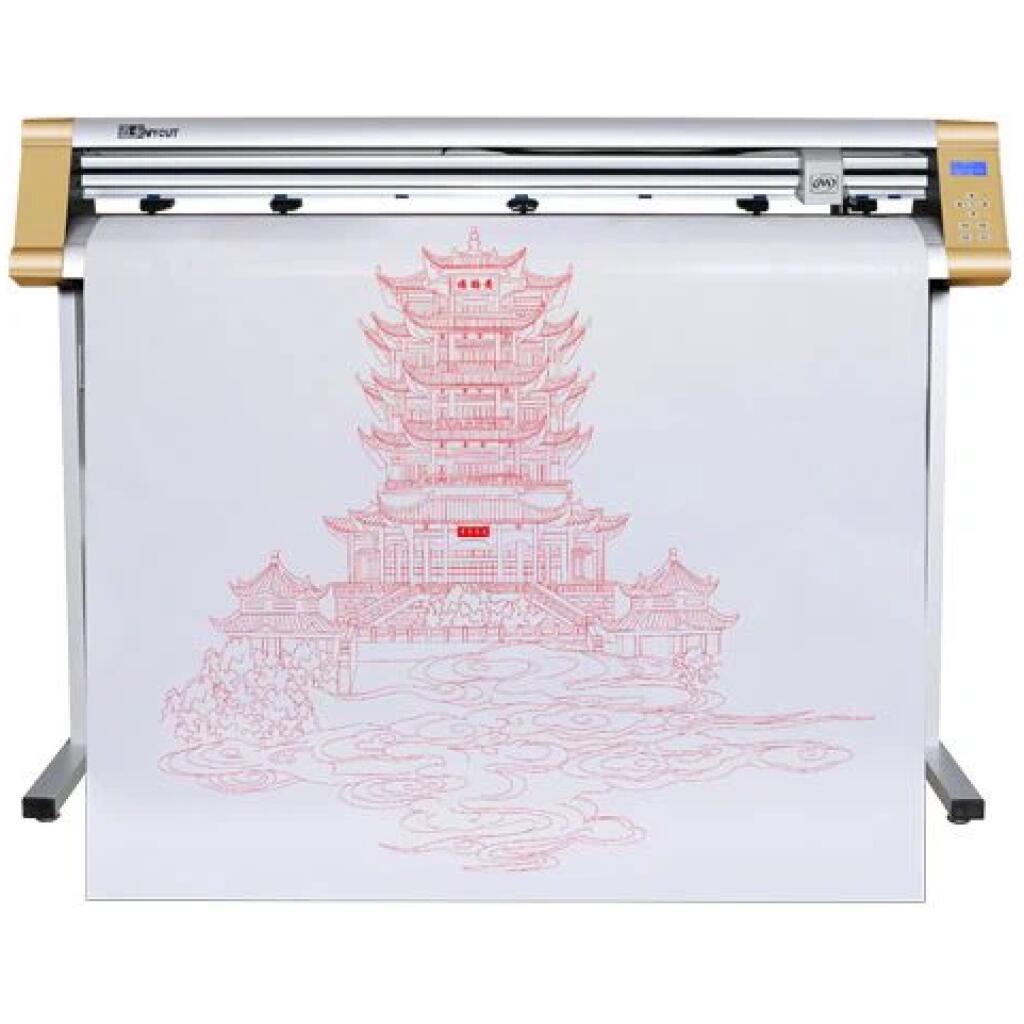

365bind Roll1500 large format cutting plotter
Roller plotter 365bind Roll1500 is a professional solution designed for advertising agencies, printing houses and sign & display companies. With a cutting width of up to 1500 mm, precise contour cutting system with CCD camera and high pressing force, the machine is the ideal tool for producing large-format stickers, vehicle graphics, thermal transfer films and much more. The robust design, based on imported steel and pressure rollers, guarantees stable material guidance even for long projects, ensuring reproducible top-quality cutting.
The touch screen makes work comfortable.
Key features and benefits
📸 Automatic contour cutting with CCD camera
The built-in CCD camera automatically finds the printing marks (stripes) on the printed material. Thanks to this, the system independently calibrates the cutting path, guaranteeing perfect precision and repeatability when cutting stickers and labels along the outline, even on long rolls.
💪 High leverage and versatile materials

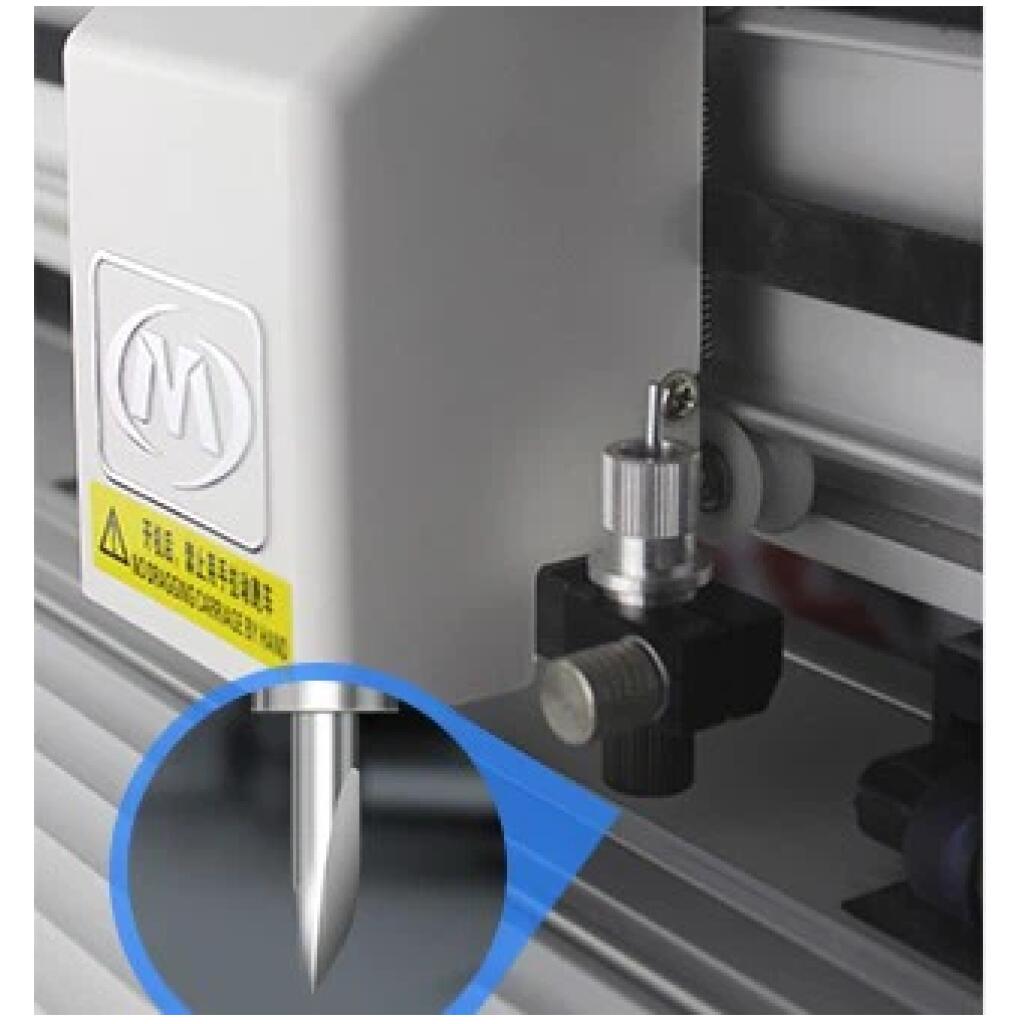

Maximum knife force of 1000 g allows you to seamlessly cut a wide range of materials - from standard vinyl films, to thick reflective films, to thermal transfer materials (flex, flock) and stencils.
⚙️ Stable and precise media guidance

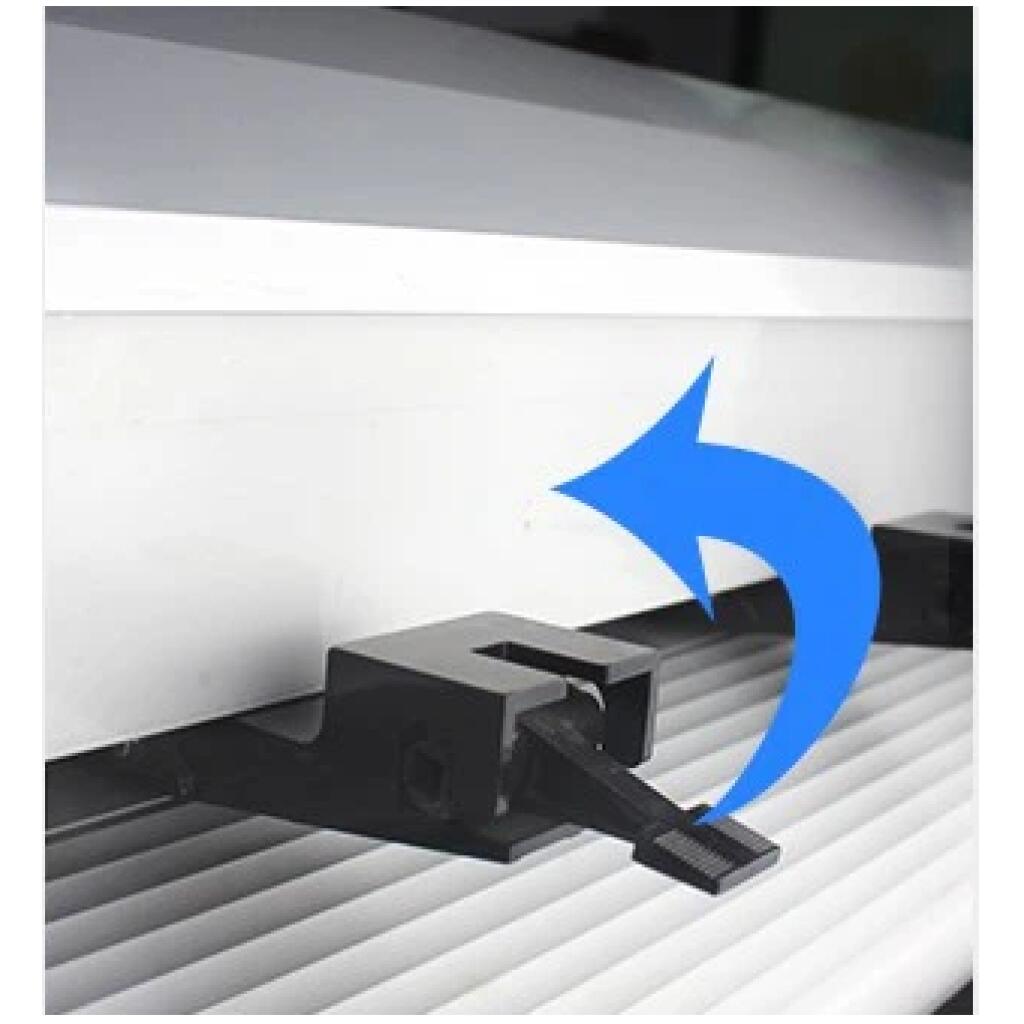

A robust design based on imported steel knurled rollers and high-pressure pressure rollers ensures that the material is guided stably and without slippage. This ensures precise cutting along the entire length, eliminating the risk of "running down" material.
🖥️ Flexibility of connections and software
The plotter offers multiple ways of communication: USB port, serial port and the ability to cut directly from a flash drive (U-disk). The device is compatible with popular programs such as Signmaster, CorelDRAW and Adobe Illustrator, making it easy to integrate into any work environment.
Main applications
- Visual advertising: Graphics for storefronts, signs, billboards.
- Vehicle graphics: Cutting out letters, logos and complex designs.
- Stickers and labels: Series production of stickers of any shape with the function of cutting along the contour.
- Clothing and textiles: Cutting of flex and flock thermal transfer films.
- Painting templates and for sandblasting.
Detailed technical specifications
| Model | 365bind Roll1500 |
| Maximum media width | 1600 mm |
| Maximum cutting width | 1500 mm |
| Drive | Stepper Motor (Stepper Motor) |
| Positioning system | Automatic, CCD camera |
| Maximum pressure force | 1000 g |
| Cutting accuracy | 0.05 mm |
| Motherboard | 64bit CPU, 256M memory |
| Interfaces | USB / Serial port / U-disk (flash drive) / Network port (optional) |
| Software | Signmaster, compatibility with plug-ins for CorelDRAW, AI, etc. |
| Weight per package | 42 kg |
| Dimensions in package | 1890 x 310 x 375 mm |
Partnership with Akonda.pl is a guarantee of peace of mind
At Akonda.co.uk, we know that buying a machine is just the beginning. That's why we provide full technical support at every stage - From professional consulting, to delivery, to implementation and service.
- Professional service Warranty and post-warranty service throughout Poland.
- Delivery, installation and training Of operating the software at your facility.
- Permanent access to consumables (knives, handles, Teflon strips) and spare parts.
