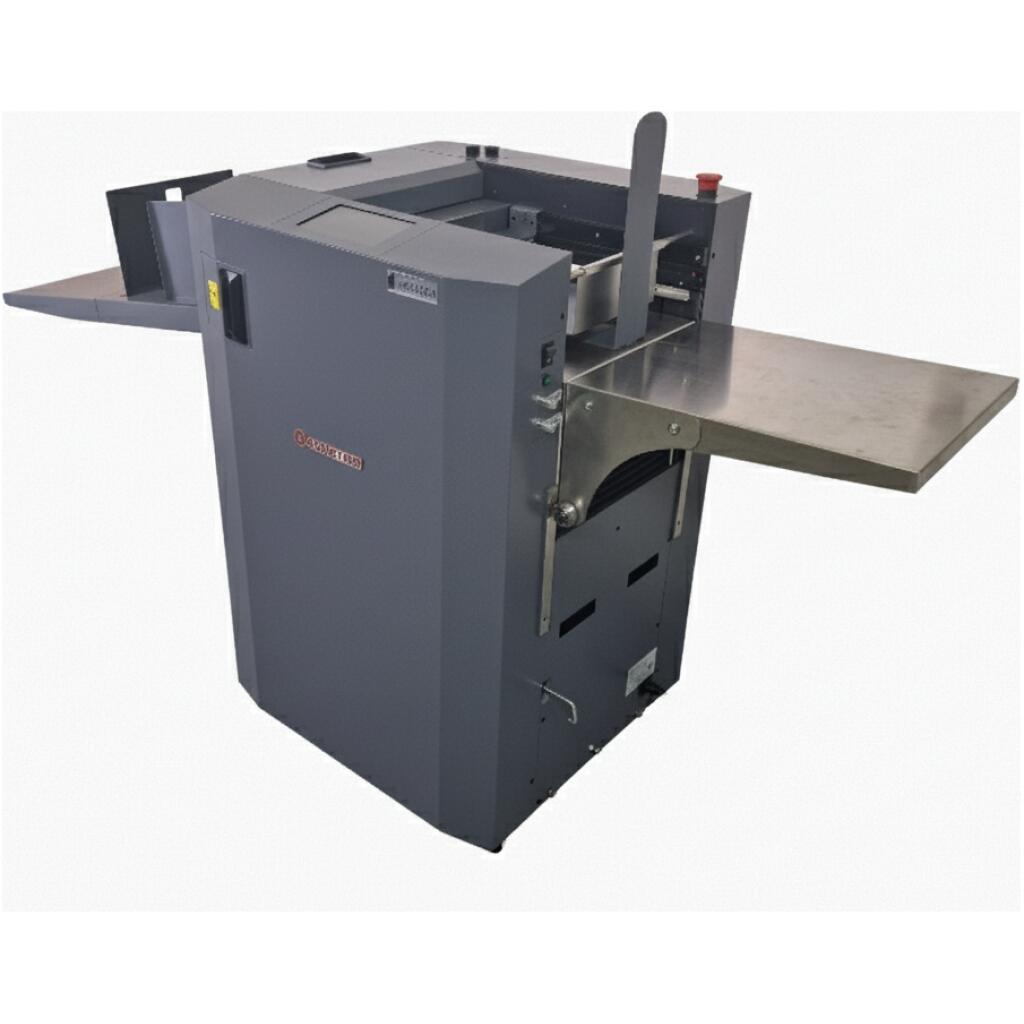

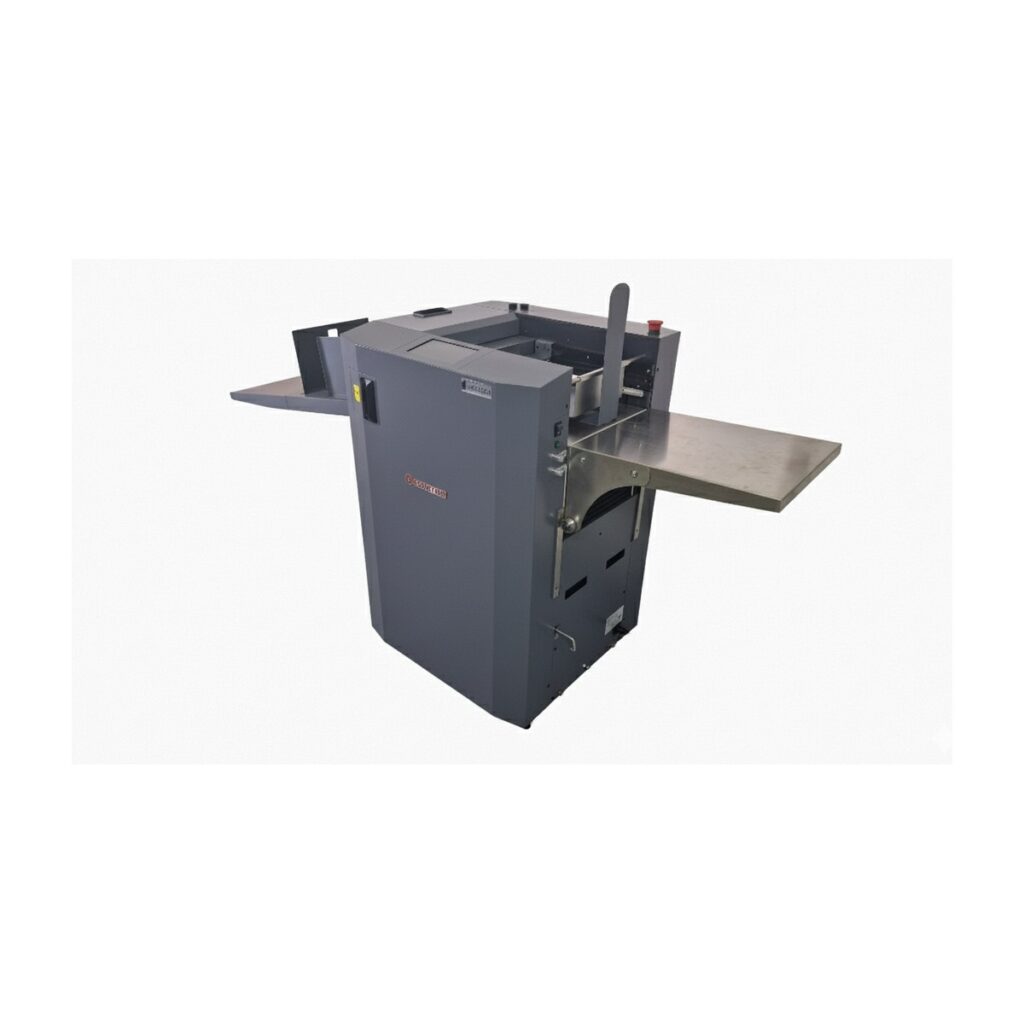

Automatic creasing and perforating machine Lightning Pro 338
Lightning Pro 338 is an advanced finishing system designed for maximum versatility and efficiency. This fully automated machine combines the functions of creasing (up and down), multidirectional perforations (cross, rotary, segmented) and incisions. Thanks to its pneumatic top suction, the device gently handles a wide range of weights (from 60 to 350 gsm), including coated, laminated and UV-varnished papers, without the risk of scratching.
Key features and benefits
💨 Top Suction.

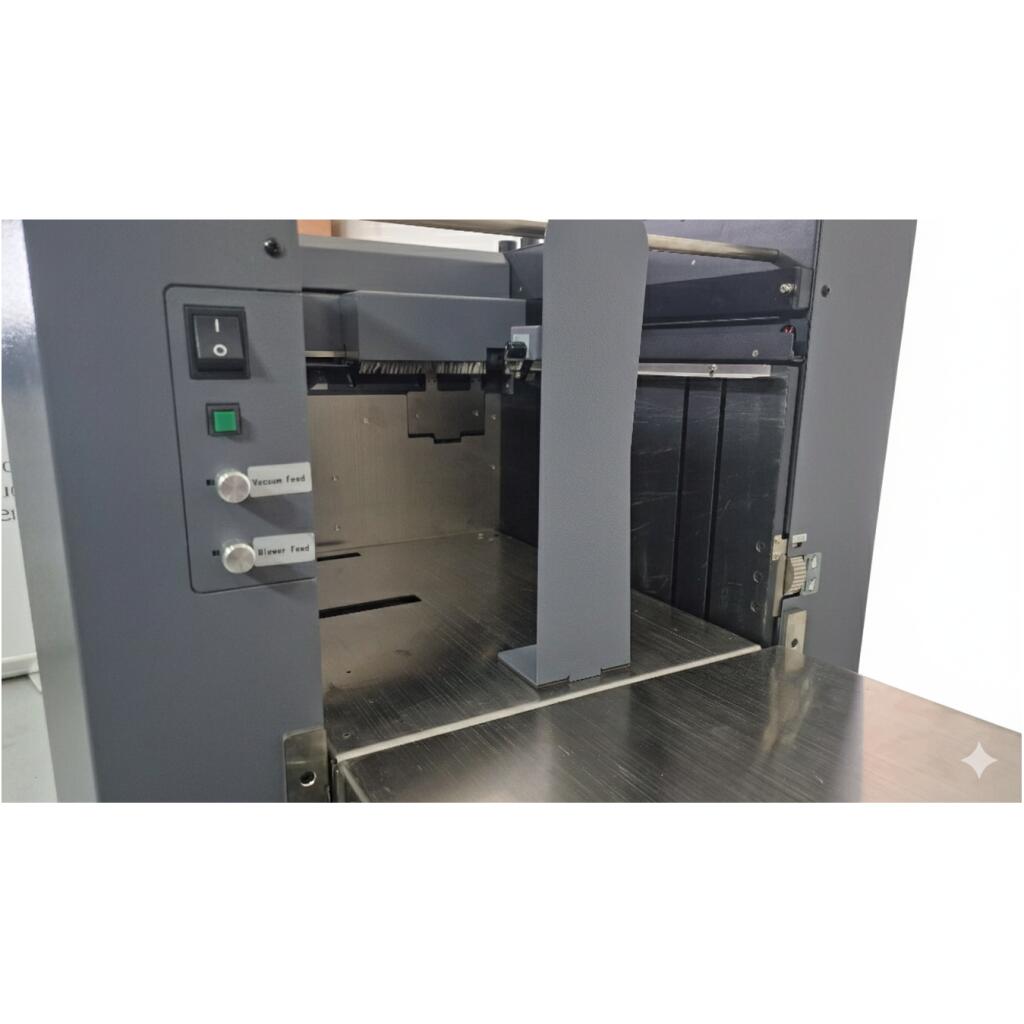

A state-of-the-art high stack feeding system (200mm) gently transports each sheet, eliminating marks and scratches. The improved design allows reliable operation with materials as small as 60 gsm.
🛠️ Versatility of tools and functions

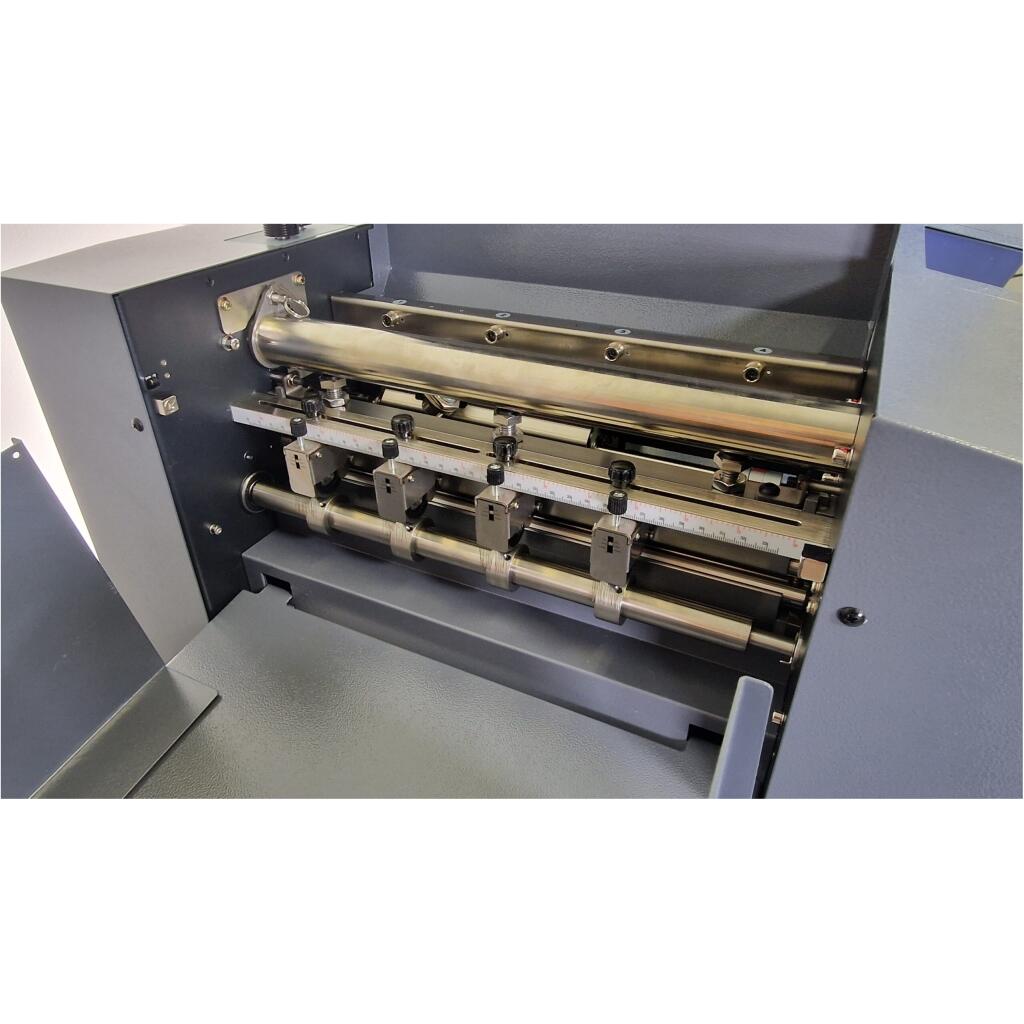

A system of slide-in modules (Slide-in Tools) allows quick tool changes. The machine performs creasing, various types of perforation, and optional in-line tools allow trimming or notching (kiss-cutting) of labels.
📚 Intelligent progressive creasing
A unique feature that moves the crease line on each successive sheet. This allows you to create perfectly flat books (lay-flat) and booklets with a perfect square spine that won't break when opened.
🚀 High performance and precision

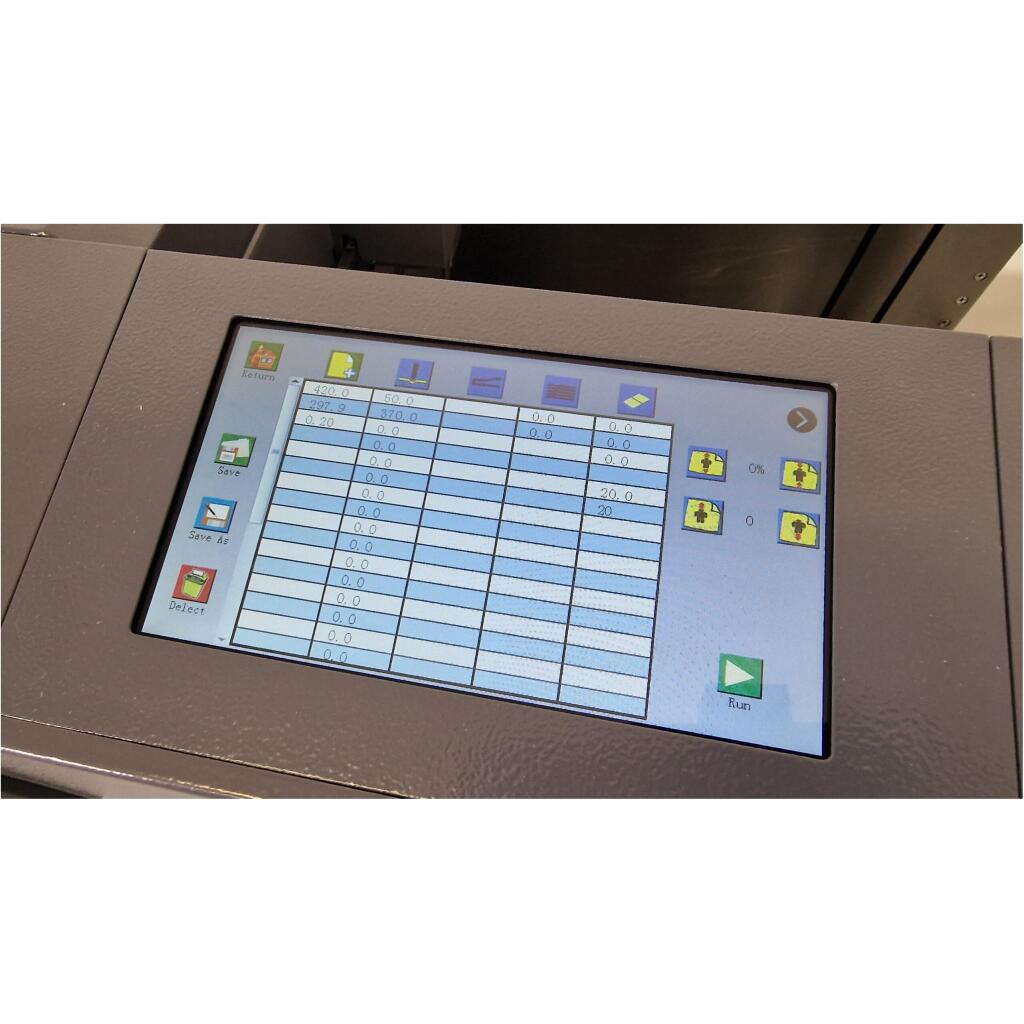

Speed to 8000 sheets/hour (A4/1 biga) and positioning accuracy +/- 0.2 mm ensure the highest quality. The whole thing is controlled by a 7-inch touchscreen, and an ultrasonic sensor protects against double-takes.
See the machine in action
Ideal application in manufacturing
Thanks to its versatility, the Lightning Pro 338 is ideal for a wide range of materials:
- Book covers in perfect bound (with perfect spine)
- High-quality restaurant menus
- Catalogs of luxury products
- Elegant invitations and promotional materials
- Multi-page brochures and magazines
Technical specifications
| Sheet size | Min: 60 x 120 mm Max: 330 x 900 mm Max with table extension: 330 x 1200 mm |
| Paper weight | 60 - 350 gsm |
| Supported papers | Chalkboard, laminated, UV-coated, offset, etc. |
| Feed height (stack) | 200 mm |
| Speed | Up to 8000 sheets/hour (A4 with 1 crease) |
| Accuracy | +/- 0.2 mm |
| Max. big / perforations per sheet | 32 |
| Control | 7-inch touchscreen |
| Special features | Cover mode, progressive creasing |
| Optional tools | Cross perforation strips (8/12/24 TPI), longitudinal perforation modules, notching module (kiss-cutting) |
Partnership with Akonda.pl is a guarantee of peace of mind
At Akonda.co.uk, we know that buying a machine is just the beginning. That's why we provide full technical support at every stage - From professional consulting, to delivery, to implementation and service.
- Professional service Warranty and post-warranty service throughout Poland.
- Delivery, installation and training operators at your facility as standard.
- Permanent access to consumables and spare parts.
