Key features of the machine
Extremely powerful and precise hydraulic pressure
Perfectly smooth chrome-plated oil-jacketed cylinder
Automatic tab makes feeding easy
Automatic pneumatically controlled separation allows for efficient operation
Automatic stop function in case of paper shortage
Easy organ
Convenient touch control panel
Winder for refining with sleeking films
One-man production operation
The machine is equipped with a winder that allows it to work with sleeking films: holographic, shining, gilding
Available colors of metallized films:
- "off the shelf." silver, gold, bronze
- coming soon: rose gold
- customized: Red, green, blue, purple, and opaque black and white.
Plain print
WOW effect with holographic foil (sleeking)
Plain print
Gilding with metallized foil (sleeking)
Offer your customers:
effect comparable to selective varnishing without dies
gilding, silvering (metallized films) + other colors
printing on metallized foil
prints hologram-protected

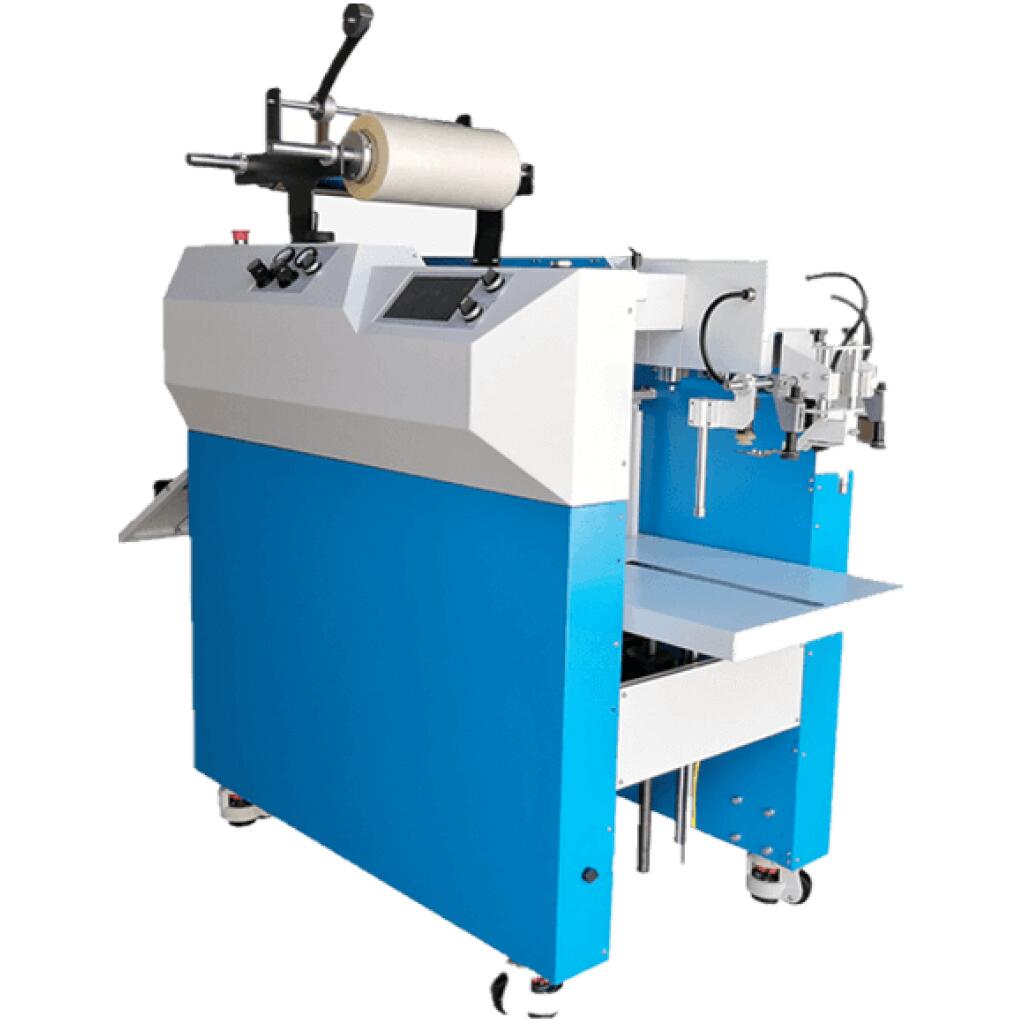

SF-390A CONVENIENCE AND ACCURACY
Precise control of air and oil pressure
Two film unwinding handles - quick change of jobs possible
Temp sensor located outside the cylinder
Reliable vacuum retrieval system
Chrome-plated cylinder
Rewinder allows finishing with sleeking films
Technical specifications
Feeding | Automatic vacuum collection | |||
Speed | 1.5-15m / min | |||
Paper format max. | 390×520mm | |||
Paper format min. | 200×300 mm | |||
Range of weights | 130-400 g/m2 | |||
Feeder capacity | 35 cm (1800 sheets 200 gsm) | |||
Film thicknesses | 20 - 45µm | |||
Max. film width | 390mm | |||
Thimble diameter | 3'' | |||
Top roller | Polished chrome-plated steel 120mm | |||
Bottom roller | Silicone 80mm | |||
Pressure | Hydraulic | |||
Programmer | 7'' touch panel | |||
Temperature range | 80-130 oC | |||
Temperature sensor | Outside the cylinder | |||
Warm-up time | 10 min | |||
Film tension adjustment | YES | |||
Foiling | Single-sided | |||
Emobosing | Not | |||
Sleeking / Rewinder | YES when using metallized, holographic or bleaching films | |||
Power supply | 220-240V, 50Hz/60Hz | |||
Power consumption | 3200 W | |||
Dimensions | W1730 x D800 x H1480mm | |||
Net/gross weight | 305/380kg | |||
