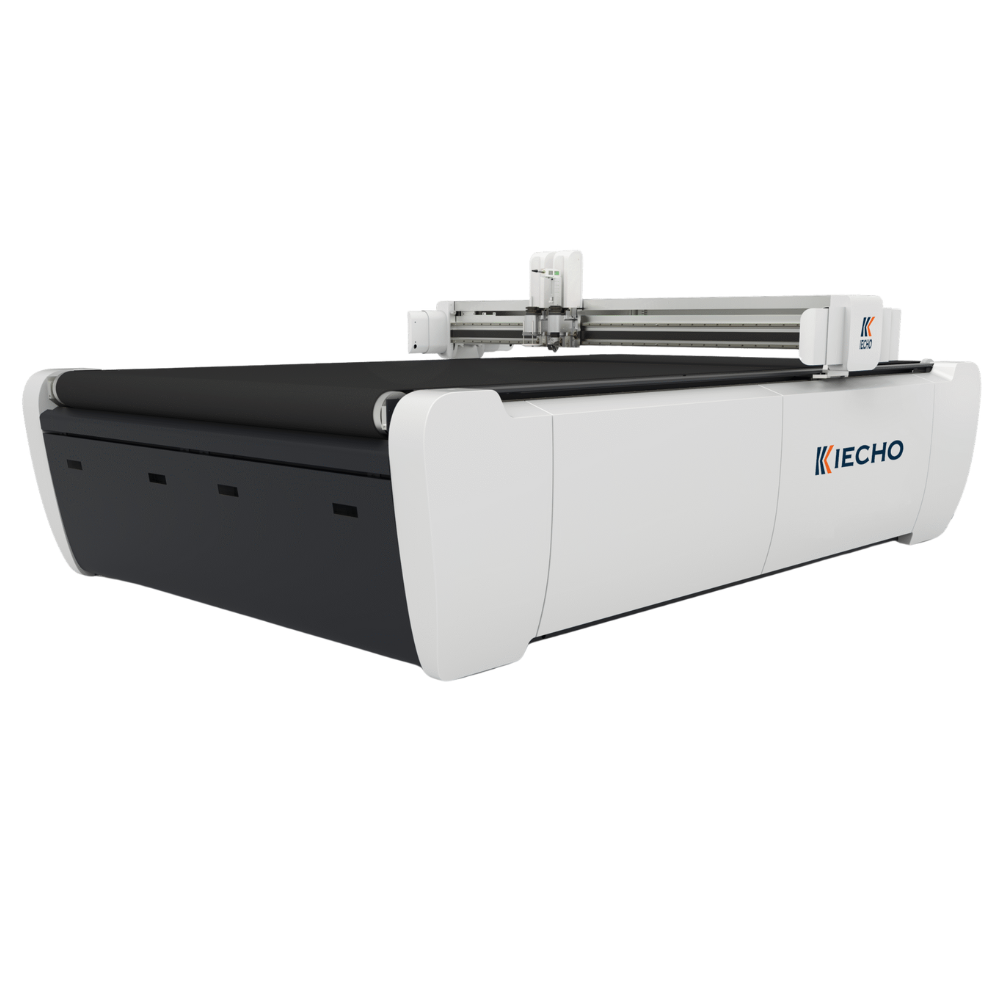

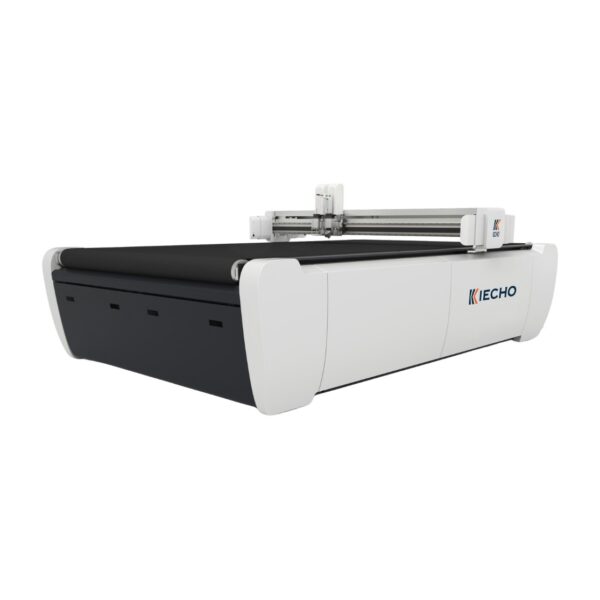

Product Features:
Powerful cutting heads
Possibility to install three heads equipped with different tools. The maximum cutting speed is 1.5 m / s (4-6 times faster than manual cutting), which significantly improves production efficiency.
Suction control system
The BK4's suction section can be individually switched on/off to achieve a more dedicated work area with more suction power and less energy loss. The suction power can be controlled by a frequency conversion system.
Aircraft aluminum table
Equipped with a zonal suction system, it offers a more economical and sturdier hold on workpieces.
Continuous cutting system
Equipped with a zoned suction system, the aluminum table offers a more economical and sturdier hold on workpieces.
Automatic knife initialization
Control the accuracy of cutting depth with a displacement sensor by automatically initializing the blade.
Accurate automatic positioning
With a high-precision CCD camera, the BK4 realizes precise positioning and registration cutting for various materials. It solves the problems of manual positioning deviation and print deformation.
Roll feeders
Roller feeders tailored to your needs.
Integrated suction pump
Suction pump integrated under the table - saving space.
Insulated solid construction
The inset design provides stability and allows for higher cutting speeds.
Application
BK4 high precision digital cutting system can be realized by cutting, notching, milling, punching, creasing and marking with high speed and high precision. Thanks to its stacker-style automatic feeding and collecting system, it can carry out commissioned work quickly and unattended. The BK4 is a suitable solution for samples, short runs and mass production in the visual advertising, commercial printing and packaging industries.
Packaging industry
POS Advertising / Large Format
Home decor
Furniture industry
Production of gaskets
Automotive
Available tools
UCT
Universal cutting tool
UCT - Universal cutting tool
The IECHO UCT can perfectly cut materials up to 5mm thick. Compared with other cutting tools, the UCT is the most cost-effective tool that allows the highest cutting speed and lowest maintenance costs. A protective sleeve equipped with a spring ensures cutting accuracy.
Supported materials:
Paper / cardboard
Self-adhesive paper
Reflective materials
Vinyl films
PET / PE / PP films
Corrugated cardboard
Corrugated plastic
Sponges / foams
Rubber materials
PTFE (Teflon) film
Leather materials
Fiberglass
VCT
V-Cutting tool for angle cutting
VCT - V-Cutting Tool
The V-Cut tool is the perfect tool for creating intricate designs from corrugated or layered materials. The tool can be set to cut at 5 different angles depending on your needs: 0° , 15° , 22.5° , 30°, 45°
Supported materials:
Solid cardboard
Honeycomb cardboard
Foam board
CTT
Creasing tool
CTT - Creasing tool
IECHO CTT is used for creasing on corrugated materials. A selection of creasing tools allows for perfect creasing. Coordinated with the cutting software, the tool can cut corrugated materials along their structure or in the opposite direction to achieve the finest creasing without any damage to the surface of the corrugated material.
Supported materials:
Paper / cardboard
Corrugated cardboard
Corrugated plastic
PTO
Pneumatic oscillating tool
POT - Pneumatic oscillating tool
The pneumatic oscillating tool is driven by compressed air. The tool has a stroke of 8mm, and is designed especially for cutting hard and compact materials. Equipped with different types of blades, the POT allows a wide range of applications. The tool can cut material up to 110mm with specialized blades.
Supported materials:
Foam board
Sponges / foams
Rubber materials
KCT
Kiss Cut Tool
KCT - Kiss Cut Tool
The Kiss Cut tool is mainly used for cutting vinyl materials. The IECHO KCT makes the tool cut through the upper part of the material without damaging the lower part. It allows for high cutting speed when working with materials.
Supported materials:
Self-adhesive paper
Reflective materials
Vinyl films
EOT
Electric oscillating tool
EOT - Electric Oscillating Tool
The electric oscillating tool is ideal for cutting medium-density materials. Coordinated with different types of blades, the IECHO EOT is used to cut a variety of materials and is capable of cutting a 2mm arc.
Supported materials:
Corrugated cardboard
Corrugated plastic
Solid cardboard
Honeycomb cardboard
Foam board
Rubber materials
Honeycomb materials
Fiberglass
PRT
Power Rotary Tool - rotary cutting disc
PRT - Power Rotary Tool
The IECHO PRT, due to its high power, is suitable for cutting a wider range of materials, even quite demanding fiberglass and Kevlar. The PRT is suitable for many industries, but is best suited for the apparel industry. It can quickly and accurately cut a suitable blank in the material.
Supported materials:
Textiles
Technical fabrics
Woven materials
Fiberglass
SPRT
Rotating cutting disc of higher power
SPRT - Super Power Rotary Tool
The ECHO SPRT is an improved version of the PRT. Among all cutting heads, the SPRT is the most powerful. Compared with the PRT, the SPRT has better stability, less power consumption and more power. There is an independent electric motor on top of the SPRT, which is the power source and stability guarantee of the SPRT.
Supported materials:
Textiles
Technical fabrics
Woven materials
Fiberglass
RZ
Routing tool 0,4kW
RZ - Routing tool
Supported materials:
Corrugated plastic
Acrylic glass
Aluminum
MDF
Foam board
Rubber materials
Composites / dibond
Honeycomb materials
Milling machine with a power of 1.8kW
With automatic tool change
Milling machine with a power of 1.8KW
Frezarka z wrzecionem o mocy 1,8 kW, prędkością obrotową do 60 000 obr./min i momentem obrotowym 29 Ncm, z automatyczną zmianą narzędzi. Maksymalna grubość cięcia to 50 mm.
70 kg
Maximum vertical load (electric spindle)/ (tool holder):
100mm/sec.
Maximum vertical speed (electric spindle) 1 (tool holder):
22m/s²
Maximum vertical acceleration (electric spindle)/ (tool holder):
18kg
Max. vertical load / Max. angular speed of rotation:
30m/s
Maximum vertical speed / Maximum angular acceleration of rotation:
50mm
Maximum cutting thickness
1.8KW
Spindle power
60000RPM
Maximum speed,
29Ncm
Maximum torque,
Technical specifications
BK4 - Technical specifications
| Model | BK4-1312 | BK4-1316 | BK4-1516 | BK4-2516 |
|---|---|---|---|---|
| Cutting area | 1300 x 1200 mm | 1300 x 1600 mm | 1500 x 1600 mm | 2500 x 1600 mm |
| Machine dimensions | 2100 x 2000 mm | - | - | 3200 x 2400 mm |
| Max. cutting speed | 1,800 mm/sec. | |||
| Cutting accuracy | 0.1 mm | |||
| Thickness of cut | up to 50 mm | |||
| Supported formats | DXF, HPGL, PDF | |||
| Print positioning | CCD camera | |||
| Tool | Active knife, notching knife, creasing wheel, oscillating knife powered by electric or pneumatic motor, milling machine 400W or 1,8kW, circular knife, punch, Beile printing tool, injet head for marking | |||
| Media | Flat and reel | |||
| Pump power | 7.5 kW / 9 kW | |||
| Power supply | 400V 50Hz | |||
| Surrounding | Operating temperature: 0-40 deg C / Humidity: 20-80% RH | |||
Najczęstsze pytania
Jakie formaty ma ploter iEcho BK4?
BK4 występuje w czterech wersjach: BK4-1312 (1300 x 1200 mm), BK4-1316 (1300 x 1600 mm), BK4-1516 (1500 x 1600 mm) i BK4-2516 (2500 x 1600 mm).
Jak gruby materiał tnie BK4?
BK4 tnie materiały do 50 mm grubości, zarówno płaskie, jak i z roli. Sprawdza się w opakowaniach, reklamie POS i wielkim formacie, home decor, meblarstwie, automotive i produkcji uszczelek.
Jakie narzędzia można zamontować w BK4?
Maszyna przyjmuje trzy głowice z różnymi narzędziami: m.in. nóż uniwersalny, V-Cut, narzędzie bigujące, noże oscylacyjne pneumatyczne i elektryczne, kiss cut, krążki tnące i frezarkę 1,8 kW z automatyczną zmianą narzędzi.
BK4 czy PK - którą maszynę wybrać?
PK to kompaktowy ploter z podajnikiem arkuszy do niskich i średnich nakładów, a część modeli pracuje na 230 V. BK4 ma większe pole robocze, tnie do 50 mm i pracuje na 400 V, więc pasuje do produkcji większych formatów, także z roli.
Jakiego zasilania wymaga BK4?
BK4 pracuje na zasilaniu 400 V 50 Hz, a podsys zapewnia pompa 7,5 kW lub 9 kW zintegrowana pod stołem.
